Knot Strength Physics: Friction & Mechanics for Anglers

The line creates a sickening pop—distinctly louder and sharper than a slip—and the rod recoils violently, signaling a lost trophy. This isn’t just a moment of bad luck; it is a catastrophic mechanical failure governed by applied mechanics. For the technical angler, a knot is not just a tangle of string, but a complex assembly of stress distribution, friction coefficients, and topological locks.

I have spent years on the water and in the shop analyzing why terminal tackle fails. The difference between a landed fish and a heartbreak often comes down to understanding the forces at play—specifically the Capstan effect and twist fluctuations. We are going to transform your connection from the system’s weakest link into a calculated engineering solution based on physical knot theory.

What Governs the Stability of a Fishing Knot? (Topology 101)

It comes down to geometry, specifically “twist fluctuations” where opposing strands rotate against each other to create a mechanical lock.

For decades, we relied on anecdotal evidence about which knots held, usually based on “counting wraps.” However, recent research has shifted the focus from simple friction to the topological layer. Stability isn’t just about how tight you pull the line or the number of crossings; it is about the internal geometry of the loop and circulations.

How do twist fluctuations create mechanical locks?

According to Jörn Dunkel and Vishal Patil, the MIT researchers who defined twist fluctuations, a knot’s stability relies on changes in the direction of rotation. Using color-mapped stress simulations (often utilizing color-sensing fibers), they visualized how two strands twisting against each other in opposite directions act like interlocking gears. This creates a “biting” effect that provides self-locking stability.

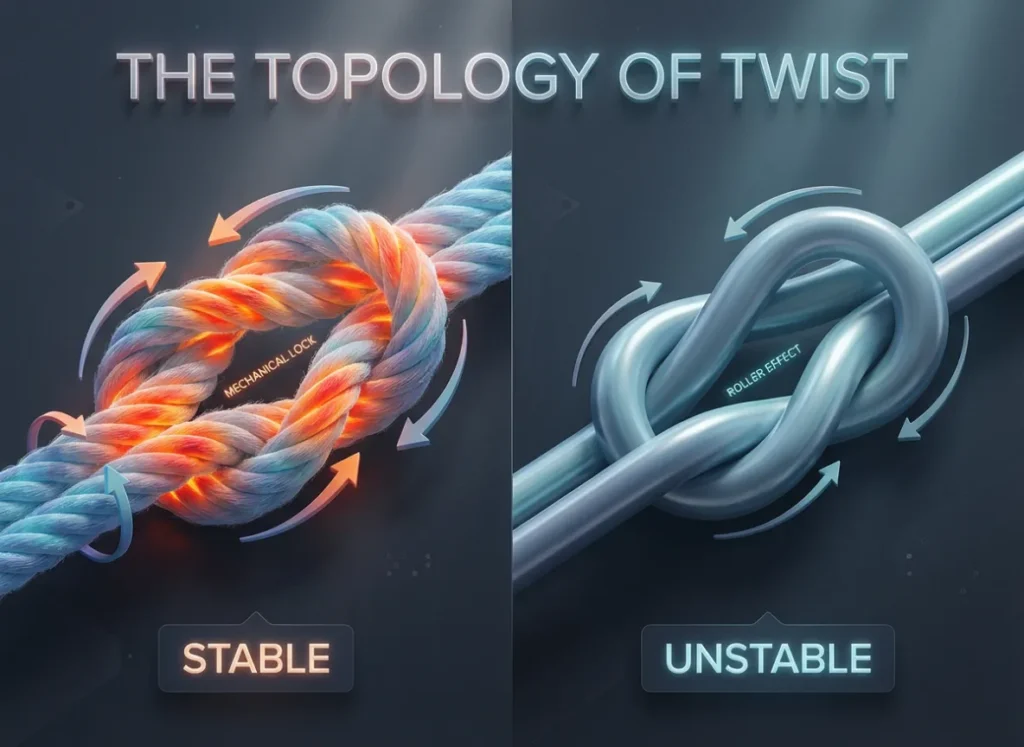

If the strands twist in the same direction, they act as rollers. This reduces internal friction and allows the knot to capsize or unravel under load. This explains the classic difference between a Reef Knot (often called a Square Knot) and a Granny Knot.

The Reef Knot possesses high twist fluctuations (opposing rotation), making it topologically stable. The Granny Knot has zero fluctuations; the strands roll over one another until structural failure. This is why mastering the Angler’s Knot Matrix involves selecting knots that inherently possess this locking geometry, rather than just adding more loops to a lowly overhand knot.

Practical application requires attention to “chirality,” or handedness. In complex connections like the Bimini Twist, alternating the direction of your locking hitches introduces the necessary fluctuations. If you stack half-hitches in the same direction, you are building a spiral that wants to unwind. If you alternate them, you are building a lock.

Pro-Tip: When tying a series of half-hitches to finish a knot, always alternate: one over, one under. This “locks the gate” by reversing the rotational force with every pass.

Why Do Friction Hitches Like the FG Knot Outperform Jam Knots? (The Capstan Effect)

Friction hitches distribute load over a larger surface area using the Capstan Effect, whereas jam knots create acute bending stress that weakens the line.

Jam knots (like the Clinch or Uni) rely on the line biting into itself to hold. While effective, this creates a stress concentrator—a specific point where the line is forced to bend sharply, reducing its breaking strength efficiency. Wrapping knots, like the FG or PR Bobbin knot, bypass this issue entirely by utilizing the physics of a rope wound around a drum.

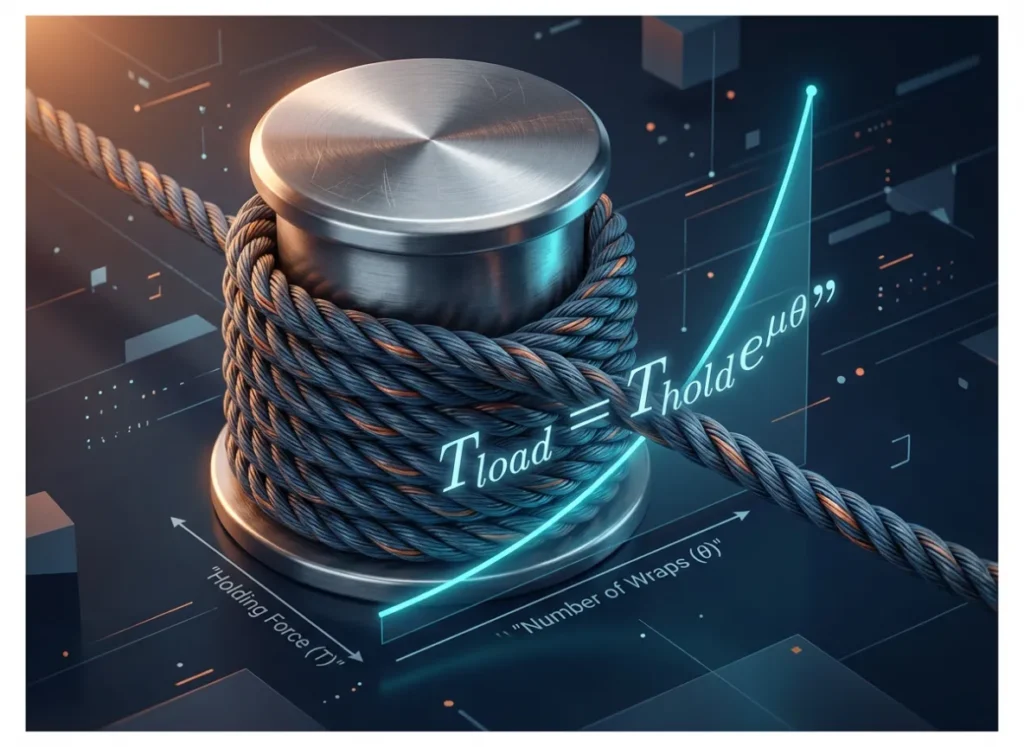

How does the Euler-Eytelwein equation calculate holding force?

This is the basic rule of how a capstan works: the more you wrap a line around a post, the more the post takes the strain instead of your arms. Every extra turn doesn’t just add a little grip—it multiplies the holding power. This is why a few simple wraps allow one person to easily hold a massive load that would otherwise be impossible to handle.

By the time you reach 20 wraps on an FG knot, the accumulated static friction reduces the tension at the working end (tag end) to near zero. This eliminates the need for a complex stopper knot that would compromise line integrity. However, there is a saturation point. Adding wraps beyond a certain count offers diminishing returns because the friction force already exceeds the line’s breaking strength.

When learning how to tie a leader for Snook and Reds, you must also consider diameter ratios. Thinner lines like Dyneema or Spectra require more wraps to achieve the same contact angle and holding power compared to thicker mono. We also add extra wraps not for dry strength, but to build a safety margin against the reduction in friction when the line is coated in water or algae (wet vs dry friction).

What is the “Chinese Finger Trap” mechanism in biaxial braids?

In braided lines, axial tension converts into radial compression. As you pull the braid tight, it elongates and simultaneously contracts inward. This torsion and compression is the secret to the splice.

The woven structure of hollow-core lines or FG wraps changes angle under load, converting the pull of the fish into a squeezing force. This squeezing generates internal pressure (the Normal Force), which is the primary variable in the friction equation. It creates a feedback loop of tensile force amplification: the harder the fish pulls, the tighter the braid squeezes, and the harder it becomes for the leader to slip.

Research on finger trap suture techniques confirms this mechanism works even on slick surfaces without adhesives. However, the initial “bite” or nip is critical. If the braid is wrapped loosely, the compression cycle cannot start. This is why ranking the best braided fishing line often comes down to weave quality; a loose weave may not constrict effectively, leading to immediate slippage.

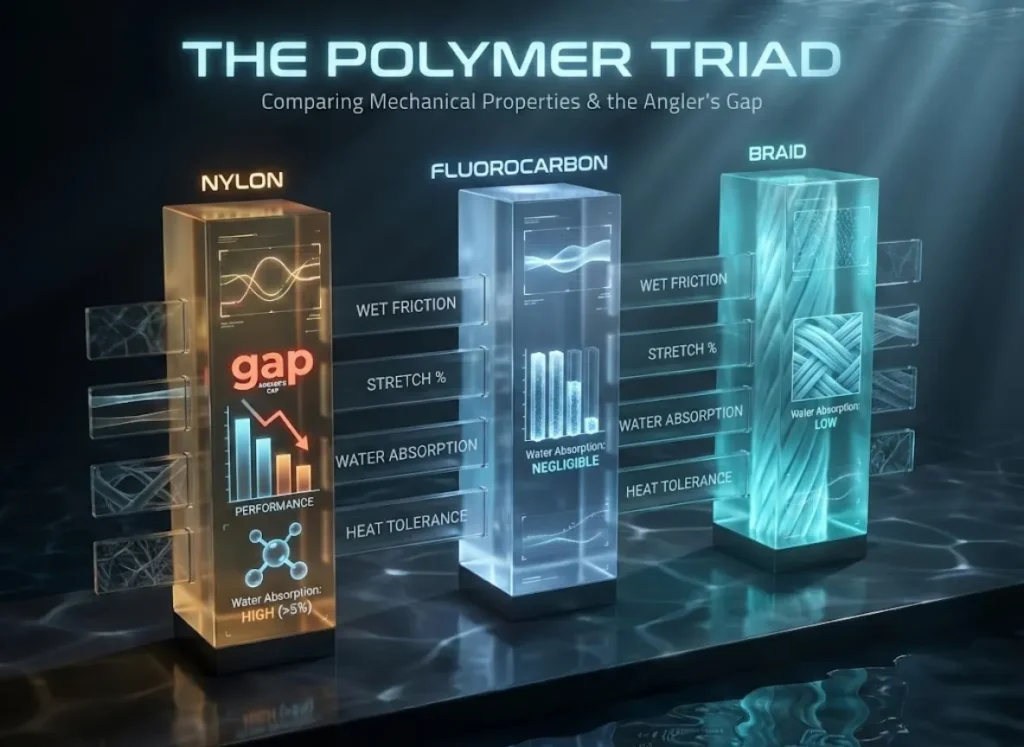

How Do Material Properties Alter Knot Performance? (Tribology & Polymers)

Different polymers react to water and stress in fundamentally different ways; Nylon weakens when wet, while Braid is susceptible to long-term creep.

A knot that holds in the garage may fail in the ocean because the mechanical properties of your line change the moment they get wet or stay under tension.

Why does water absorption drastically weaken Nylon knots?

Polyamide (Nylon) is hygroscopic. It absorbs water molecules into its amorphous regions, which act as a plasticizer. This increases chain mobility and lowers the Glass Transition Temperature.

According to research from Ifremer, water absorption significantly alters the mechanical behavior of nylon fibers. The coefficient of surface friction drops from ~0.4 (dry) to ~0.1 (wet). This makes simple friction knots unreliable once submerged. While wet nylon stretches more, offering shock absorption, it loses 10-20% of its ultimate tensile strength compared to its dry state.

This is the “Angler’s Gap”—the difference between Anglers Lab tests and reality. Swelling fibers can help “seat” a knot if tied wet, but can cause a dry-tied knot to loosen. When evaluating the braid vs fluorocarbon vs monofilament trade-offs, remember that Fluorocarbon (PVDF) is hydrophobic. It maintains consistent friction and strength values regardless of water exposure, making it more predictable, though more brittle.

How does the creep phenomenon affect UHMWPE (Braid) connections?

Creeping (or cold flow) is the tendency of a solid material to slowly deform under long-term constant stress. Ultra-High Molecular Weight Polyethylene (Dyneema/Spectra) is particularly susceptible to this viscoelastic behavior.

If a knot or splice is left under constant tension—like a leader on a rod with a tight drag stored for weeks—the fibers can slowly “flow.” This loosens the grip over time, leading to unexplained failure on the next trip. Technical data on Ultra Strong Polyethylene Fibers highlights the extremely low kinetic coefficients of friction ($\mu \approx 0.05$) of braid, which provides little resistance to this deformation.

To mitigate this, we rely on high-contact-area knots like long FGs or splices to distribute the load. This minimizes the localized stress that drives creep rupture.

Pro-Tip: Never store your rods with the drag locked down or the line under heavy tension. Loosen the drag completely to prevent molecular creep from weakening your knots while the gear sits in the rack. This is a core part of sustainable fishing gear maintenance.

What Is the “Angler’s Gap” in Knot Testing? (Thermodynamics)

Dry testing ignores “frictional heating,” which can generate flash temperatures high enough to damage line integrity during the cinching process.

We often test knots in air conditioning, but we fish in harsh environments. The most critical error occurs in the split second you tighten the knot, involving velocity-dependent friction.

How does friction heat compromise line integrity during cinching?

When you pull a knot tight, mechanical work is converted almost entirely into thermal energy at the friction points. While the bulk temperature of the line might remain low, the “flash temperature” at microscopic asperities (rough points) can momentarily exceed 200°C.

This is dangerous because UHMWPE (braid) has a relatively low melting point of roughly 140°C-150°C. A fast cinch can glaze the fibers, making them brittle before you ever make a cast. Frictional heating calculations model these rapid spikes, confirming that heat-induced failure is real and immediate.

The old advice to “spit on the knot” is not superstition; it is thermodynamics. Water acts as both a lubricant (reducing work) and a coolant (absorbing heat). You must adhere to the “Slow and Wet” rule: apply moisture liberally and cinch slowly. This dissipates heat and preserves the polymer’s original tensile strength. Once the knot is set, calibrating your species-specific fishing drag ensures you don’t exceed the working load of that connection.

Conclusion

We can distill knot efficiency down to four physical truths. First, stability is topological; knots like the Reef hold because they are geared to lock, while Granny knots are geared to roll. Second, wraps equal power; the exponential nature of the Capstan Effect allows us to reduce tag-end tension to zero without compromising line strength.

Third, water changes everything; Nylon acts like a sponge, losing friction and strength, while Braid demands massive surface area to combat its slick, creeping nature. Finally, heat kills; rapid dry cinching generates flash temperatures that damage your line before the lure hits the water.

Next time you rig up, don’t just tie—engineer. Test your knots in a wet environment to simulate reality, and share your experiences with high-efficiency friction hitches in the comments below.
