Crankbait Hydrodynamics: Bill Angle & The Dive Curve

You know the feeling. You make a long cast toward a submerged ledge where you graphed a school of bass. You crank the handle, waiting for the rod tip to load up with that distinct grinding sensation of plastic striking rock. But it never happens.

The lure swims enticingly, but it swims over the fish, not through them.

It isn’t bad luck, and the fish didn’t move. It’s physics. A crankbait hitting the water is not a roll of the dice; it is a mechanical engineering problem solving for depth, vibration, and deflection.

When a lure fails to reach the strike zone, the failure rarely lies in the fish’s mood. It lies in a misunderstanding of the fluid dynamics acting on that piece of plastic. Over decades of freshwater bass fishing, from the TVA reservoirs to clear natural lakes, I’ve learned that mastering the “Dive Curve” requires ignoring the marketing on the box.

You have to understand the rigid laws of drag, lift, and buoyancy that dictate exactly where your lure travels. Here is how we strip away the guesswork and engineer a path to the bottom.

What Determines the True Depth of a Crankbait?

The true running depth of a crankbait is primarily determined by the Angle of Attack (AoA) and the Aspect Ratio of its bill. These two factors work together to generate a downward force vector. This force must overcome both the buoyancy of the body and the drag of the line to pull the lure down.

Why is the “Steeper Angle Means Deeper” idea a myth?

A persistent misconception exists that a bill pointing steeply downward—a perpendicular bill relative to the body—will dig deeper into the water column. In reality, the opposite is true.

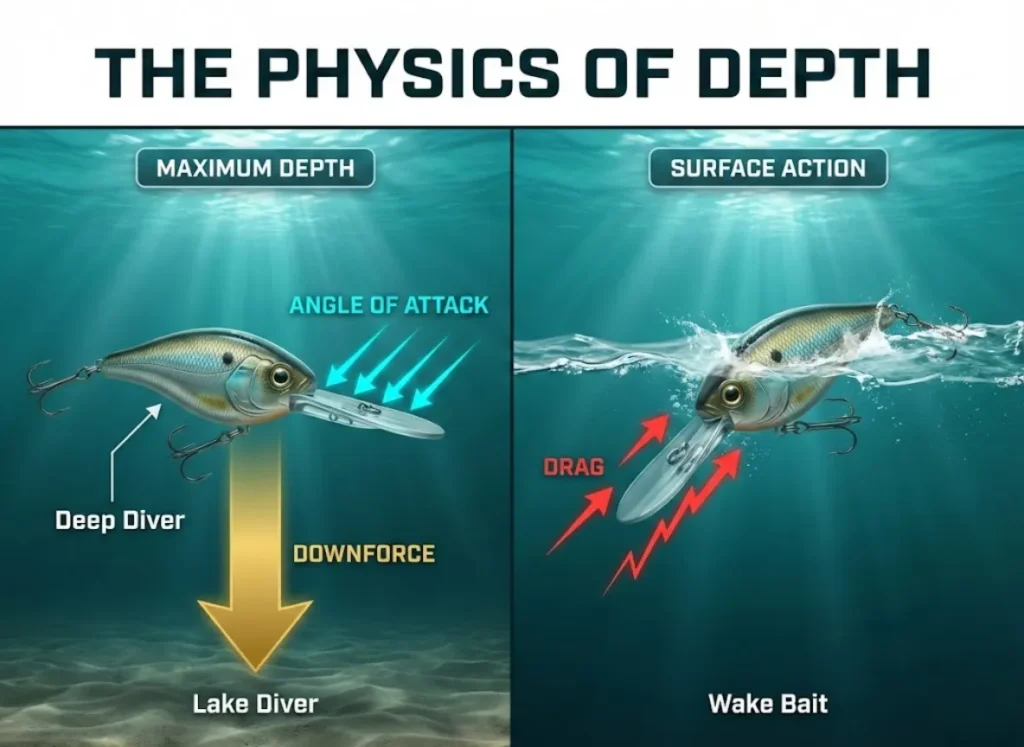

The deepest diving lures, like the massive Strike King 10XD or 6XD, utilize a bill that extends nearly horizontally from the nose. It sits as a parallel bill to the body’s longitudinal axis. This specific orientation creates the maximum Angle of Attack (AoA) relative to the water flow the moment you start your retrieve.

By presenting the full surface area of the lip to the oncoming water immediately, the lure functions as a powerful hydrofoil, generating a massive diving vector. This drives the nose vertically, initiating a steep descent slope that gets the bait down fast.

Conversely, a bill angled steeply downward increases hydrodynamic resistance but significantly reduces vertical diving force. This configuration is typical of wakebaits or shallow runners. Here, water pressure forces the bait to roll and wobble violently on the surface rather than dive.

Understanding this distinction prevents the error of selecting a “steep” looking bill when your goal is actually maximum depth penetration. This isn’t just angling theory; it is backed by data on the hydrodynamic characteristics of crankbait lips.

This research confirms that specific bill shape geometries correlate directly to sinking force coefficients. Once you grasp this physical geometry, you can build a comprehensive system for fishing deep diving crankbaits that actually reaches the depth zones you are targeting.

How does the Bill’s Aspect Ratio influence efficiency?

Once the angle is set, the efficiency of the dive is governed by the shape of the bill itself. Aspect Ratio ($\lambda$) defines the relationship between the span (width) of the hydrofoil and its chord (length).

High-aspect-ratio bills are long and narrow. These are the hallmark of “Dredger” style crankbaits, like the Bandit Ledge 250, because they minimize induced drag from vortex shedding at the tips. This aerodynamic efficiency allows the lure to maintain a high “Dive-to-Drag” ratio. It pulls the line down to 20+ feet without creating resistance that is physically exhausting to reel all day.

On the other hand, low-aspect-ratio bills—short and wide—are common on a square bill or coffin bill. They are less efficient at diving but superior at creating disturbance. The wide profile generates large, low-frequency vortices. This results in a wide “thump” that fish feel through their lateral line system, rather than a tight “shimmer.”

We accept this inefficiency in shallow water because it slows the bait down. The wide bill also creates a protective shield for the hooks during deflection off structure, which is critical when employing strategies for fishing heavy cover. This mirrors the physics of drag reduction in aquatic locomotion, where vortex shedding dictates how energy moves through the water.

How Does Material Science Alter Lure Performance?

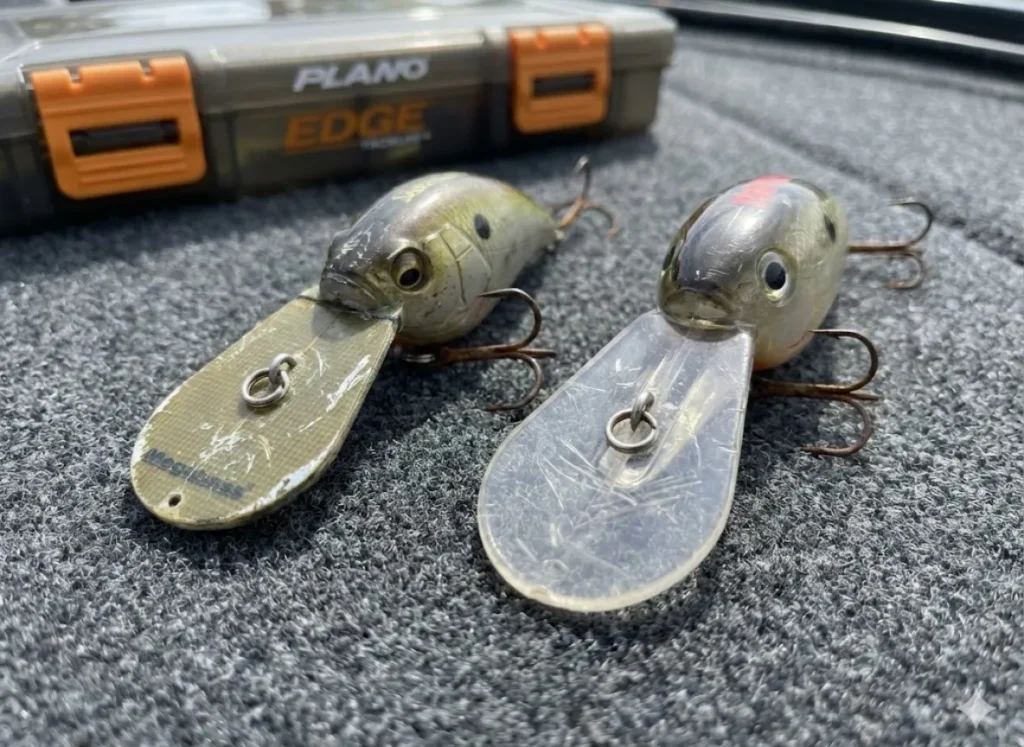

While geometry dictates the potential depth, the bill material determines the tactile feedback you receive through the rod blank. We generally look at two dominant materials: Polycarbonate and Circuit Board.

What is the “Sensitivity Coefficient” of Circuit Board (G10) lips?

Circuit board G10 is a composite laminate that possesses an exceptionally high stiffness-to-weight ratio. This structural strength allows manufacturers to produce lips that are significantly thinner (~0.8mm) than their polycarbonate counterparts (~2-3mm). You see this often on baits like the Spro Little John or 6th Sense Crush.

The razor-thin leading edge slices through water with minimal “start-up inertia.” This allows the bait to begin its hunting action immediately upon hitting the water, rather than needing a few feet of drag to get moving.

Because G10 is rigid and fibrous, it acts as a highly efficient transducer of vibration. Unlike softer plastics that dampen energy, a circuit board lip transmits the specific frequency of the bottom composition up the line.

This “Sensitivity Coefficient” allows an experienced angler to distinguish the difference between the “mushy” drag of clay and the “crisp” tick of gravel. This feedback loop is essential to the physics of feel in fishing rods.

Pro-Tip: In cold water (below 50°F), switch to a crankbait with a G10 lip. The tighter, faster start-up action often triggers lethargic fish better than the wider wobble of a plastic lip, and the sensitivity helps you feel the subtle “wet sack” sensation of a winter bite.

When should you choose Polycarbonate over Circuit Board?

Polycarbonate (Lexan) is a thermoplastic that can be injection-molded integrally with the lure body. This creates a seamless bond that prevents the lip from being pulled out during high-stress encounters, such as ripping the bait free from submerged vegetation.

The optical clarity of polycarbonate creates a more natural presentation in clear water. An opaque circuit board lip might appear unnatural to sight-feeding bass in high-visibility conditions.

For extreme deep divers (20-25ft), the lip experiences immense tuning and torque pressure that can delaminate composite materials over time. The thicker cross-section of a polycarbonate lip provides the necessary rigidity to prevent flex, ensuring the dive angle remains consistent throughout a long cast. Manufacturers rely on this for the Rapala DT series (like the DT6 and DT10) or the Strike King 10XD to ensure consistent performance under heavy load.

Why Do Environmental Variables Change the Dive Curve?

Even with perfect lure geometry and material, the depth achieved is physically capped by the external variables of your “Trolling System.” Specifically, we must look at your line and your cast.

How does line diameter create the “Catenary Curve” effect?

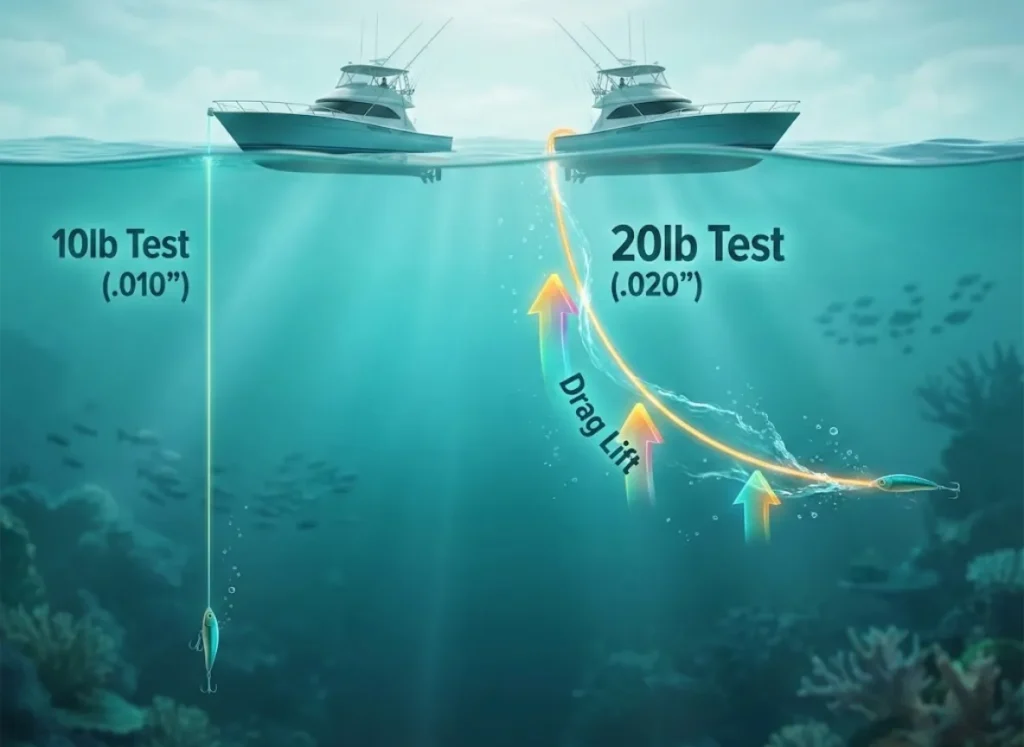

Fishing line acts as a long, submerged cylinder. It is subject to hydrodynamic drag as it moves through the water. This drag force creates an upward vector that lifts the line, creating a bow known as a Catenary Curve.

The line diameter is the “throttle” for this drag. Doubling the line diameter significantly increases the lift, pulling the nose of the lure up and reducing its maximum depth. Reducing line size from 14lb test (.014″) to 10lb test (.010″) can increase a crankbait’s running depth by several feet due to reduced fluid friction.

Fluorocarbon line has another big advantage: it’s heavy. Unlike standard nylon line that tends to float or stay near the surface, fluorocarbon sinks. This helps pull your lure down deep much faster. Plus, because of its weight and texture, it cuts through the water with less resistance, allowing your gear to move more naturally underwater without being held back by “drag.”

To maximize your depth, you need a data-backed breakdown of braid vs fluorocarbon vs monofilament to choose the right tool for the specific depth rating.

Why is casting distance critical for deep diving?

A crankbait retrieve follows a parabolic path consisting of three phases: the descent, the equilibrium (max depth), and the ascent. On a short cast (e.g., 60 feet), the lure enters the ascent phase almost immediately after completing the descent. It never spends meaningful time in the strike zone.

The “Rule of 100” suggests that to reach the advertised depth of a “20-foot diver,” a cast of roughly 150 feet is mechanically necessary. This distance allows the pendulum to flatten out. Proper ballasting inside the lure helps achieve this distance by shifting the center of gravity during the flight.

Techniques like Paul Elias’s famous kneel and reel technique mechanically alter this geometry by lowering the rod tip 2-3 feet underwater. This lowers the origin point of the line, flattening the angle at which the line enters the water. It reduces the upward drag vector near the boat, forcing the lure to stay at its maximum depth for significantly longer, often helping you reach a deeper thermocline.

To execute this, you must be analyzing rod power vs action—often favoring fiberglass crankbait rods—to ensure your gear can handle the load of a long-distance launch and the resistance of the retrieve.

Pro-Tip: When “Kneeling and Reeling,” point your rod tip directly at the lure rather than to the side. This reduces the friction of the line against the guides, allowing for better sensitivity despite the rod tip being submerged.

Conclusion

Catching fish on a crankbait is about controlling variables.

• Depth is Geometry: Maximum depth comes from a bill parallel to the body (0° AoA) and a high Aspect Ratio.
• Material Matters: Use Circuit Board (G10) for feel in shallow cover; use Polycarbonate for durability in the abyss.
• The System Rules: Your depth is fluid. It changes based on Line Diameter (thinner = deeper) and Cast Length (longer = deeper).

Understanding these forces transforms you from someone who just casts and winds into an angler who visualizes the math beneath the surface. Explore our full library of Advanced Lure Mechanics to continue building your analytical toolkit for the water.
