Parts of a Fishing Rod: Anatomy, Function & Repair Guide

The subtle “tick” that travels up the line, through the guides, down the blank, and into your hand is more than just a bite—it’s a conversation. That conversation is only possible because a modern fishing rod is not just a stick; it’s a finely tuned system of interconnected parts. Understanding the anatomy of a fishing rod is the first step toward true mastery for any angler, from the beginner angler to the seasoned pro. This guide moves beyond a simple diagram of fishing components to give you the owner’s manual you never got. By understanding the function and lifecycle of the main components of a fishing rod, you’ll transform your equipment from a simple piece of gear into a true extension of your will, capable of being maintained, repaired, and trusted for a lifetime of fishing.

This journey will take us through the very core of your rod, exploring its foundation and the materials that give it life. We will then move to the control center, the handle and reel seat where you connect with the tool. We’ll discover the science behind the line management system that ensures a perfect cast, and finally, we’ll offer a troubleshooting guide—the confidence to perform essential maintenance and repair yourself.

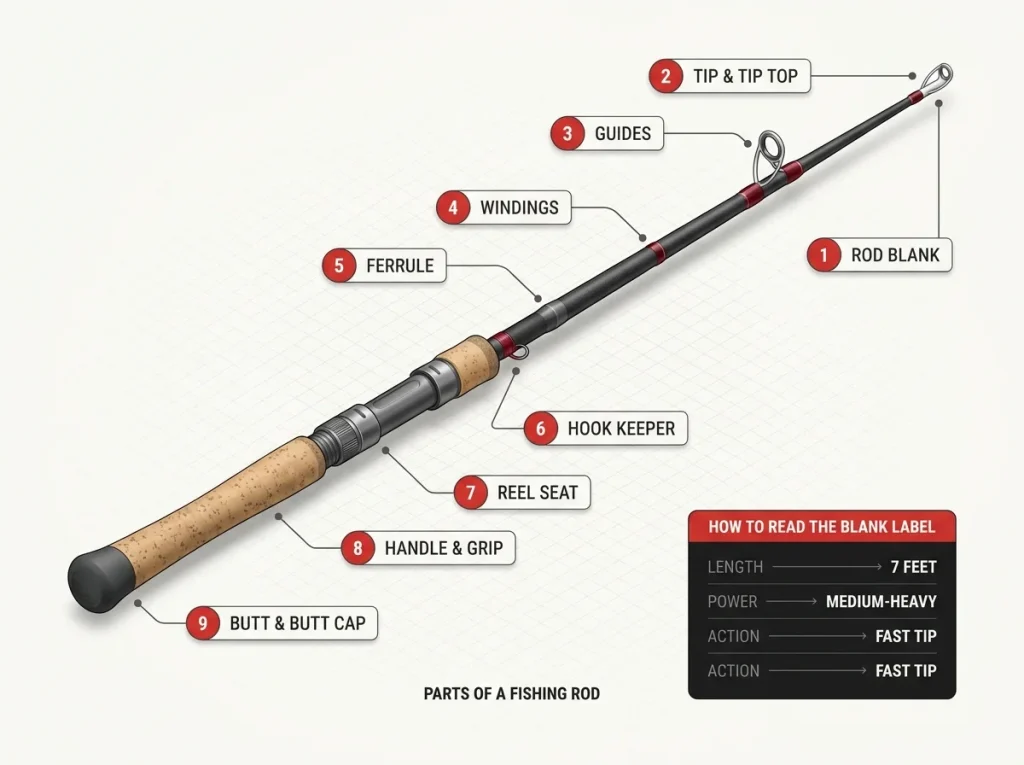

The Foundation: Deconstructing the Rod Blank

Every great tool has a heart, a core from which all its performance flows. For a fishing rod, that core is the rod blank. It is the primary driver of everything the rod can do, from launching a lure to the horizon to transmitting the whisper of a fish’s breath. Gaining this fishing rod knowledge is the first and most critical step to truly understanding your gear.

What is the rod blank and how does it function?

Think of the rod blank as the foundational, tapered shaft upon which all other components are mounted—it is the skeleton of the whole rod. Its elegant, simple form hides a complex, multi-faceted purpose. Its first job is to act as a spring or a lever. As you sweep the rod back, it stores kinetic energy, and as you bring it forward, it releases that energy in a smooth, powerful arc that propels your lure. Its second function is to provide the structural strength, or “backbone,” necessary to drive a hook home and apply steady, confident leverage when fighting a good fish. Finally, and perhaps most magically, it serves as a conduit to transmit vibrations. It is the nerve center of the system, transmitting the subtle signals of fish bites or a lure’s wobble from the line, down its length, and into your hands.

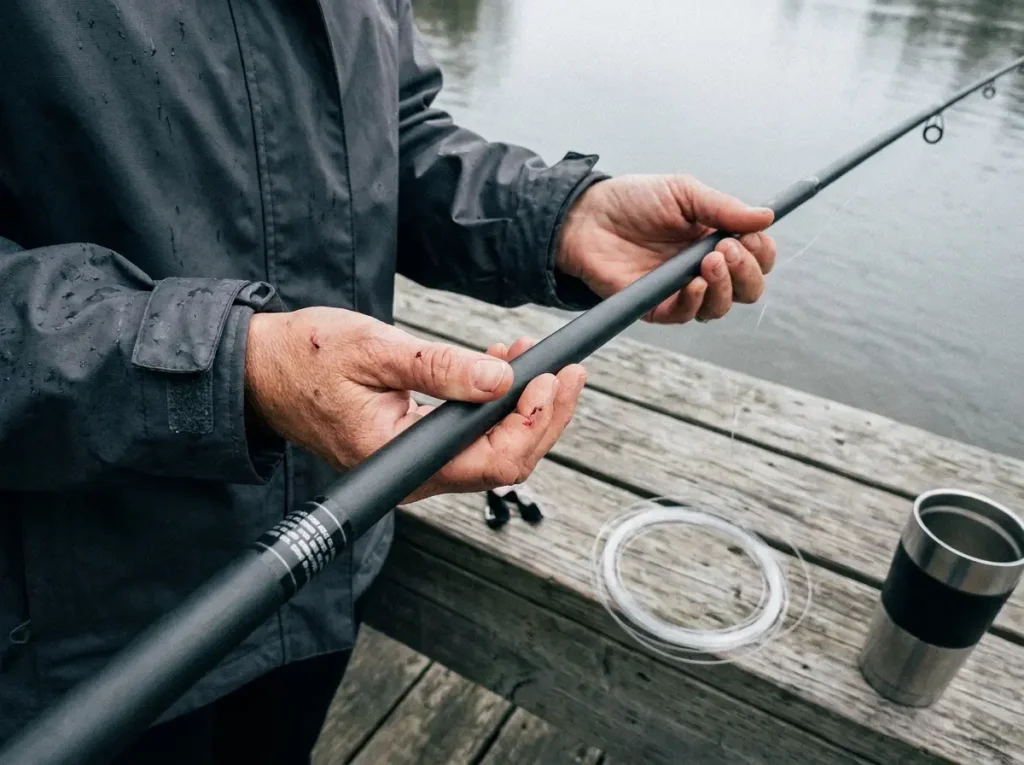

This performance is not born from a single attribute, but from a delicate interplay of design elements. The blank’s “taper”—the rate at which its diameter changes from the thick butt to the fine tip—is the primary determinant of its “action,” or where it gets bent. Its “power” is a function of its wall thickness and the stiffness of its material, dictating its resistance to that bend and its raw lifting strength. The quality and design of the blank, this concert of taper, thickness, and rod material, are the single most important factors in a rod’s overall performance, influencing everything from casting distance to how sensitive it feels. These are the Foundational components of fishing gear that every angler should know. With the blank’s purpose clear, the next question is how science turns simple fibers into this high-performance core.

How does a blank’s material dictate its performance?

The leap from a simple cane pole to a modern fishing rod is a story of material science. The character of a rod is written in the very fibers it’s made from, and understanding these materials is what makes matching a rod to a purpose possible. This choice is critical for specific bass fishing techniques and for any other targeted angling.

The three primary materials you’ll encounter are Fiberglass, Graphite, and Composites. Fiberglass is the old soul of the group, known for its exceptional durability and high flexibility. This creates a rod with a slower, more parabolic bend—a “forgiving” action that’s ideal for lures with treble hooks, like crankbaits, because it prevents the hooks from tearing out during a fight. Graphite, or carbon fiber, is the modern standard. It is significantly lighter, stiffer, and far more sensitive than fiberglass. This stiffness allows for faster actions, making graphite rods perfect for techniques that require quick hooksets and the ability for detecting bites that are incredibly subtle. Composites are the hybrid solution, a blend of graphite and fiberglass designed to capture the benefits of both. Often, a composite rod will feature graphite’s sensitivity in the tip part with fiberglass’s durability in the powerful butt section, creating a wonderfully versatile tool for different fishing conditions.

The secret language of high-performance graphite rods is “modulus.” This is a technical term for the material’s stiffness-to-weight ratio. A higher modulus (e.g., IM8 vs. IM6) means a stiffer fiber. This is directly linked to sensitivity. Because higher modulus fibers are stiffer, designers can use less material to achieve the same power. A lighter blank has less mass to dampen vibrations, meaning more of the feel from the lure and the fish is transmitted directly to your hand. Some high-end blanks even integrate advanced additives like Graphene or Boron into the resin that binds the fibers, increasing strength and recovery speed without adding weight. This all begins as sheets of “pre-preg”—carbon fiber fabric pre-impregnated with resin—which are meticulously rolled around a steel mandrel to form the blank’s final taper and action. Understanding the science is one thing; knowing how to maintain that finely tuned instrument is the true mark of an owner. Learning How to maintain and store fishing equipment is a non-negotiable skill for the serious angler.

The Control Center: The Handle Assembly

If the blank is the soul of the rod, the handle assembly is where you shake its hand. It’s the physical interface, the point of control where angler and equipment become one. Its design and materials dictate comfort, control, and just how much of that conversation happening at the end of your line actually reaches you. This assembly includes the handle (or grip), reel seat, butt, and hook keeper.

What are the components of the handle and grip?

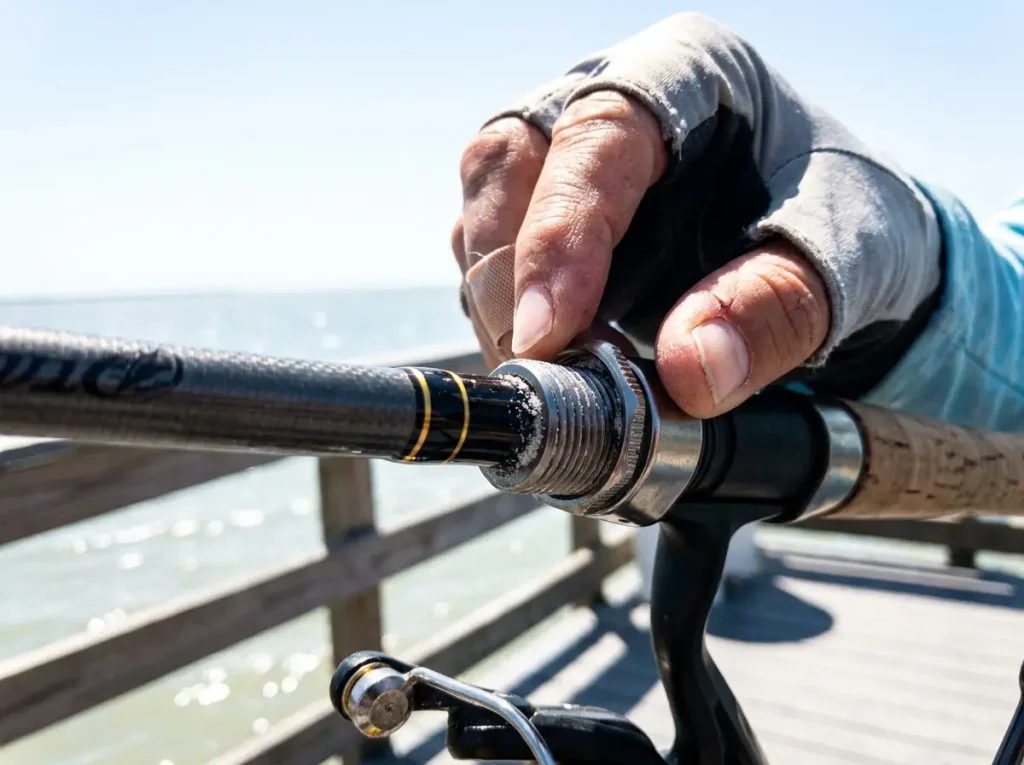

The handle assembly begins at the very end of the rod with the Butt Cap, a protective piece of durable rubber or cork that protects the blank’s end and provides a non-slip surface for bracing against your body in the butt, or thickest part of the rod. Moving up, you have the Grips themselves—the Rear Grip and, on some models, a Foregrip—which are the primary contact surfaces for your hands. They are crucial for comfort, control, and leverage. Grip design has evolved, with the traditional “Full Grip” offering a continuous surface, while the modern “Split Grip” exposes a section of the blank between the reel seat and the rear grip. This split design reduces weight and, more importantly, can increase sensitivity by allowing your hand to make direct contact with the blank. A simple but essential component, the Hook Keeper (or keeper ring), is a small loop located just above the handle, providing a safe place to secure your hook when not in use.

While the core parts of a fishing rod are universal, their design often changes based on the intended fishing style. A spinning rod handle and reel seat are designed for the reel to hang underneath, often with a simple, straight grip. A baitcasting rod, however, mounts the reel on top and almost always includes a trigger grip for better control. A fly rod has a highly specialized grip and a unique reel seat, often with a hood mechanism and decorative wood inserts, tailored to its specific casting motion. Understanding these nuances is key to selecting the right rod that will rod fit your unique fishing preferences.

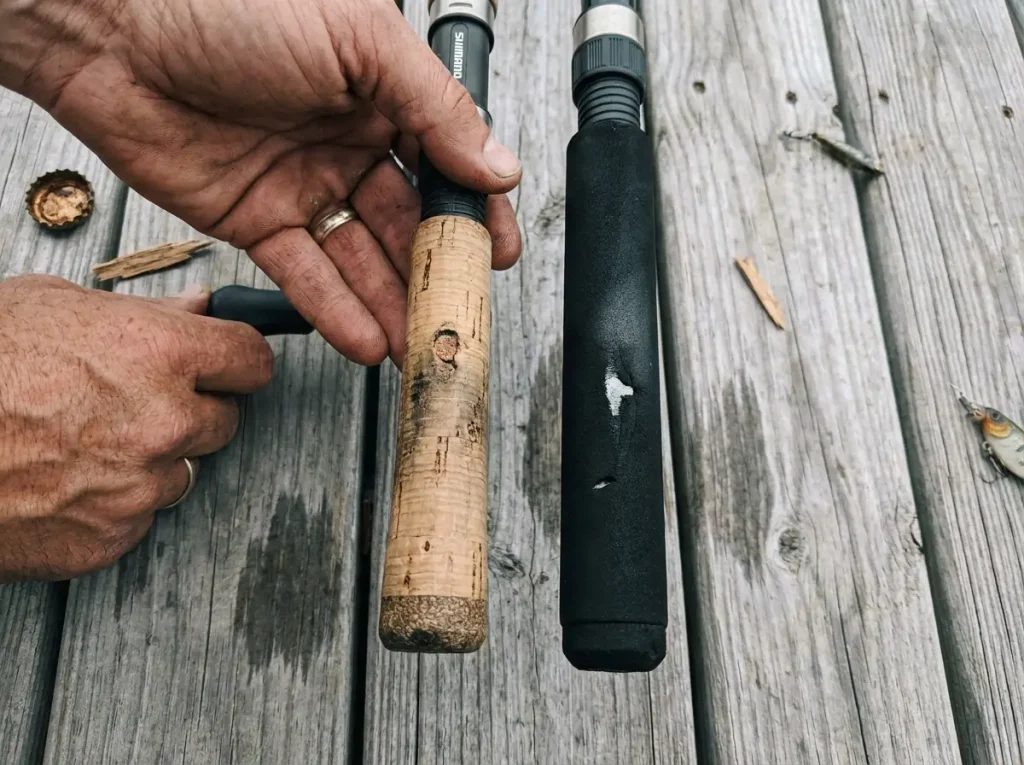

The materials used for these grips involve critical trade-offs. Cork is the classic choice—it’s lightweight, transmits vibration beautifully, and feels warm in the hand. EVA Foam is a durable, comfortable, and cost-effective alternative that provides an excellent, often padded grip but slightly less sensitivity. At the high-performance end, you’ll find Carbon Fiber grips, which are extremely lightweight and offer maximum sensitivity, but at a higher cost. Specialized designs, like the “Pistol Grip” on some casting rods, are ergonomic and tailored for specific casting styles. Ultimately, the handle’s design and materials work in concert to influence the rod’s overall balance and weight distribution, which has a direct impact on angler fatigue over a long day on the water. For anyone who just started fishing, a solid overview like the Guide to Fishing for the First Time can help clarify these basic parts of a rod. While the grip provides comfort, the mechanical heart of the handle is the component that anchors your reel to the rod: the reel seat.

How do you repair a loose reel seat?

There are few things more frustrating than the distinct wobble or click of a loose reel seat. This indicates a failure of the original epoxy bond that holds the seat to the blank, and it robs you of both sensitivity and control. Fortunately, the fix is straightforward and creates a bond that is stronger than the original. The method involves injecting new, flowable two-part epoxy into the void between the reel seat and the rod blank to re-establish a solid connection.

First, diagnosing rod problems like this is simple: apply pressure to your mounted reel; if it moves independently of the rod, the bond has failed. To begin the repair, remove the reel. Using a marker, place four small, equally spaced marks on the reel seat in an area that will be covered by the reel foot, strategically hiding the future drill holes. Next, carefully drill a small-diameter hole through the reel seat material at each mark—be very careful not to drill into the rod blank itself.

Now for the injection. Mix a batch of slow-curing, flowable (not paste) two-part epoxy. Draw the epoxy into a syringe and slowly inject it into each of the four holes until the void appears full. Immediately after injection, rotate the reel seat a full 360 degrees to spread the epoxy evenly within the void. Carefully align the reel seat with the line guides, wipe away any excess epoxy with a rag and some denatured alcohol, and then let it sit undisturbed for a full 24 hours to cure completely. This method is far superior to simply dabbing glue around the edges because it creates a complete, durable, and permanent internal bond, restoring the rod’s original solidity and sensitivity. It’s a critical repair for ensuring a solid platform for casting a baitcaster and for maintaining feel with any setup.

Pro-Tip: When selecting an epoxy for a reel seat repair, choose a “slow-cure” formula (30 minutes or longer). This gives you more working time to inject and align the seat perfectly. It also tends to be less viscous, allowing it to flow more easily into the small voids for a stronger, more complete bond.

With the angler’s connection to the rod secured, we turn our attention to the system that manages the angler’s connection to the fish: the line.

The Line Management System: Guides, Tip-Tops, and Windings

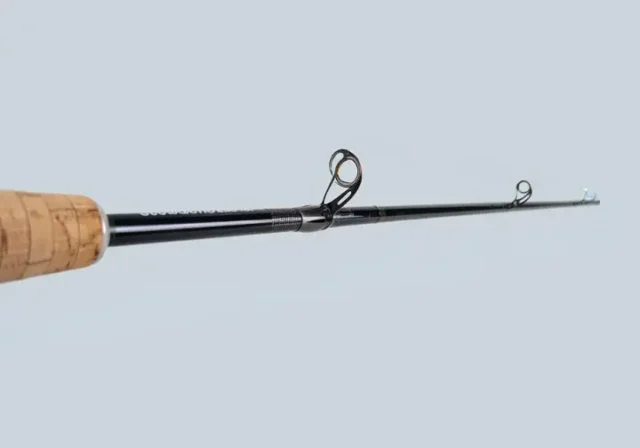

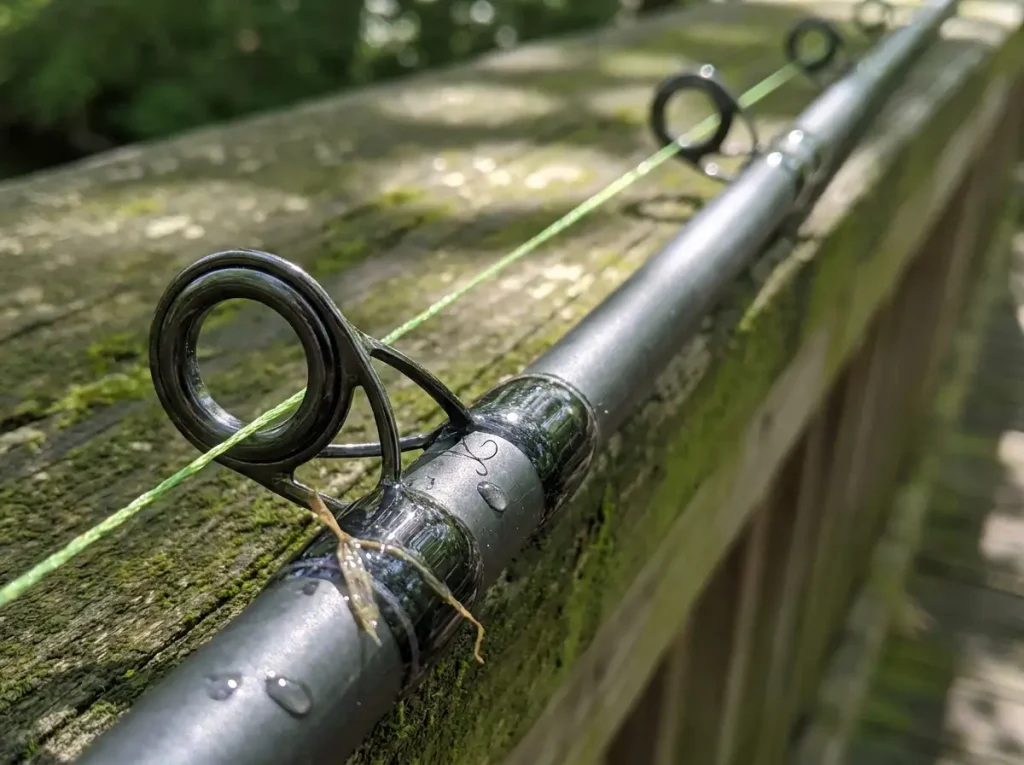

This elegant series of rings is the unsung hero of the fishing rod. Line guides (or eyes) are far more than simple loops to hold the line. They are an engineered system responsible for taming the line during a cast, distributing the immense stress of a fighting fish along the blank’s entire length, and acting as the final transmitters of vibration before the signal reaches the blank itself. The different parts include the butt guide (closest to the handle) and on fly rods, a specialized stripping guide.

What makes a good line guide, and how do you replace a broken one?

A good line guide performs three functions flawlessly. It controls the flow of line to maximize casting accuracy and reduce tangles; it distributes the load of a fighting fish to allow the blank to bend naturally and powerfully; and it efficiently transmits vibrations from the line to the blank. Each guide consists of two parts: the frame, typically made of metal like steel or lighter, corrosion-resistant titanium, and the insert, which is the smooth, hard ring that the line actually touches.

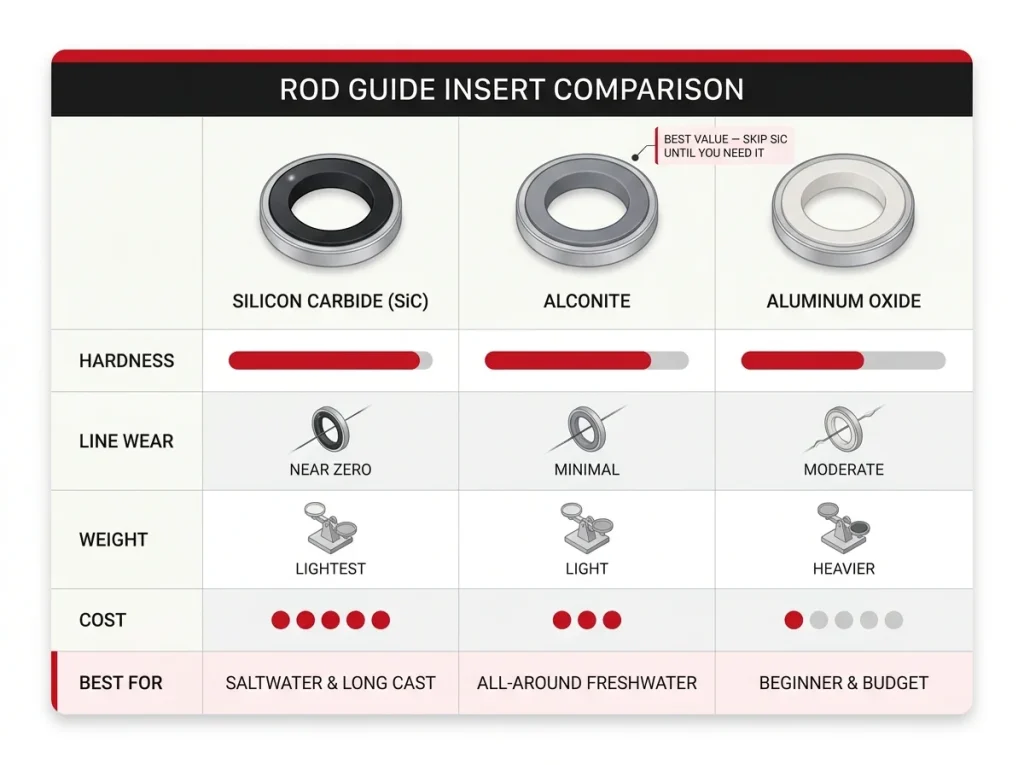

The insert material is critical. The durable standard is Aluminum Oxide. A step up is Alconite, which is lighter and smoother. At the top end is Silicon Carbide (SiC), an extremely hard and slick material that helps reduce friction to a minimum and offers maximum heat dissipation for minimal line wear, especially with modern braided lines. The most critical guide is the Tip-Top, located at the rod’s terminus, or rod tip. It is often the most flexible part of the rod, but also the most fragile, bearing incredible stress and being vulnerable to damage.

A cracked guide insert is a critical failure. The sharp edge of a cracked ceramic ring will quickly fray and break your line under pressure, often with a prize fish on the other end.

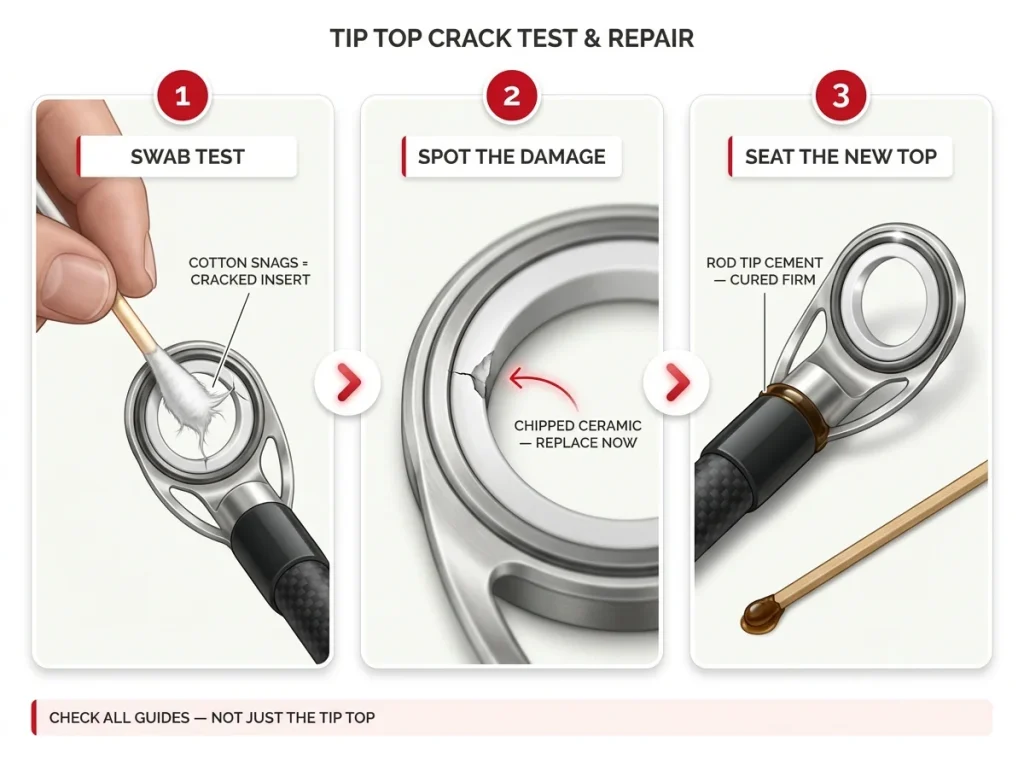

Pro-Tip: To check for microscopic cracks in your guide inserts, run a cotton swab or a piece of nylon stocking through each one. If any fibers snag, you’ve found a crack that could cost you a big catch. This simple check should be part of your regular gear maintenance routine.

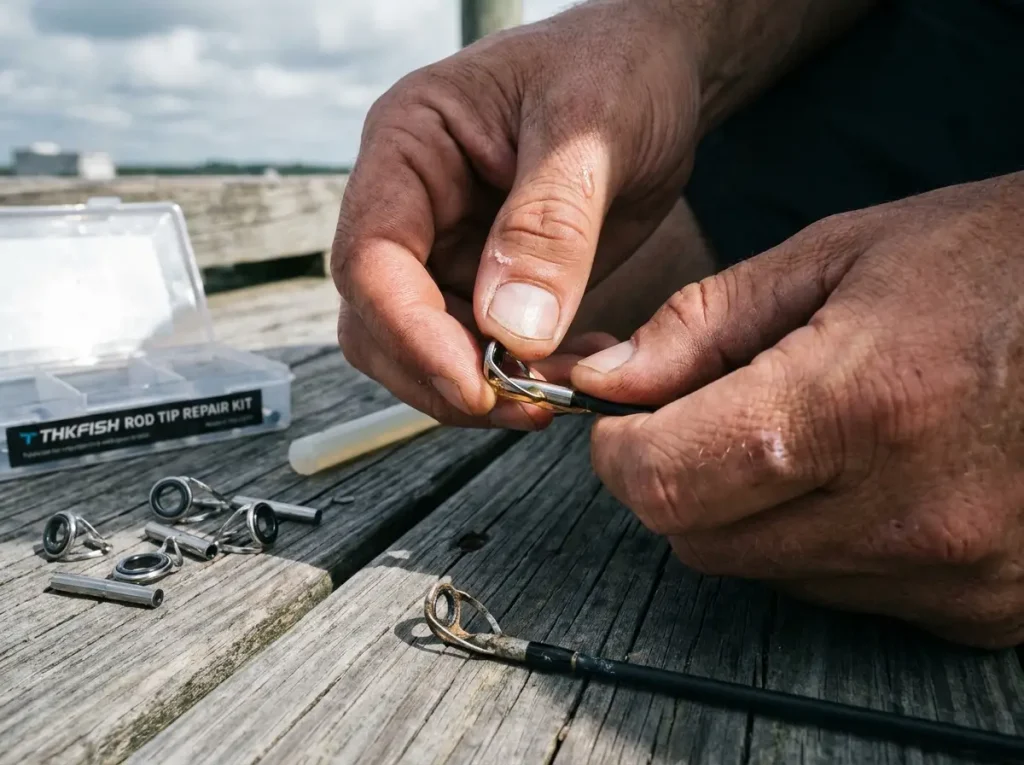

Repair or replacement instructions for a broken Tip-Top are some of the easiest for an angler to learn. First, gently heat the metal tube of the old tip-top with a lighter to melt the hot glue holding it in place. Using pliers, pull the old tip straight off and clean any old glue from the blank tip. To install the new one, heat a stick of tip-top adhesive (a type of hot glue) and apply a small amount to the blank tip. Slide the new tip-top on, and quickly align it with the other guides before the glue hardens in about a minute. The specialized string threads that hold the other guides to the blank are called windings (or wrappings), and they are coated in a durable enamel or epoxy. Replacing one of these “running guides” is a more involved process of removing the old wraps and re-wrapping the new one. Understanding how different line types interact with the guides is key to appreciating why high-quality inserts matter. For many anglers, the rod isn’t a single long piece but a portable system, and the point where those separate rod pieces connect requires its own special understanding.

The Connection Point: Understanding and Caring for Ferrules

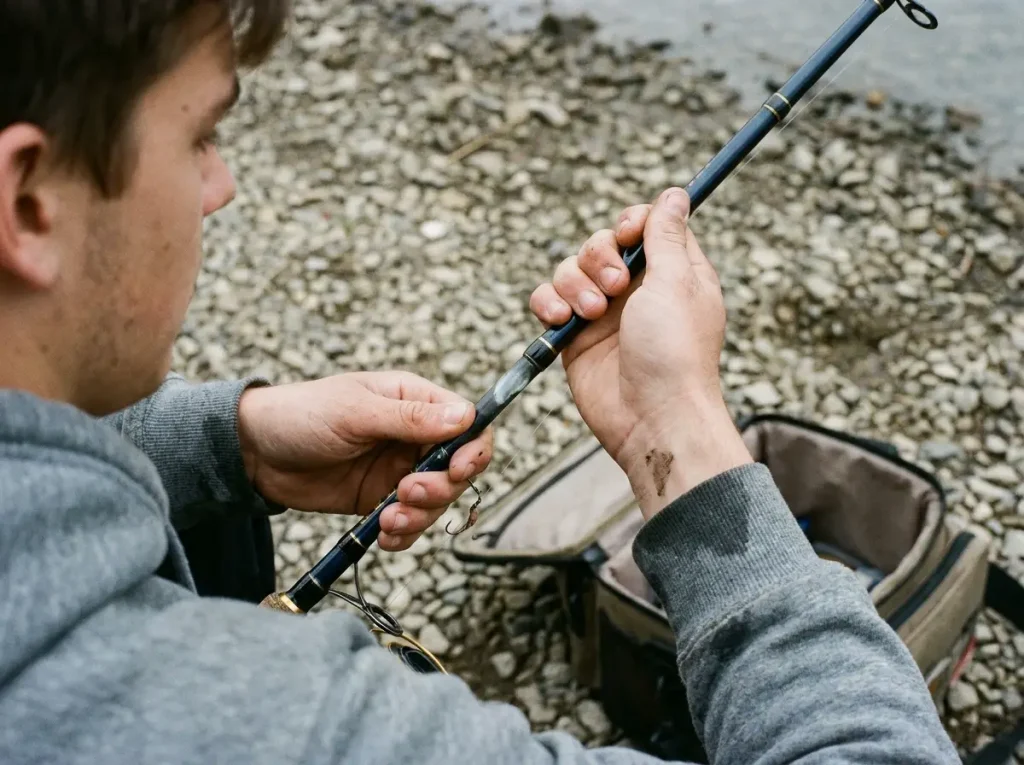

For those of us who use multi-piece rods for travel and convenience, the ferrule is the critical connection point. It’s the joint that allows the sections to be securely connected, engineered to allow the rod to flex through the joint as if it were a single piece. A well-maintained ferrule is unnoticeable; a neglected one can become hopelessly stuck or, worse, fail catastrophically during a cast. These are common on everything from beginner rods to high-end custom builds.

How do you properly maintain the ferrules on a multi-piece rod?

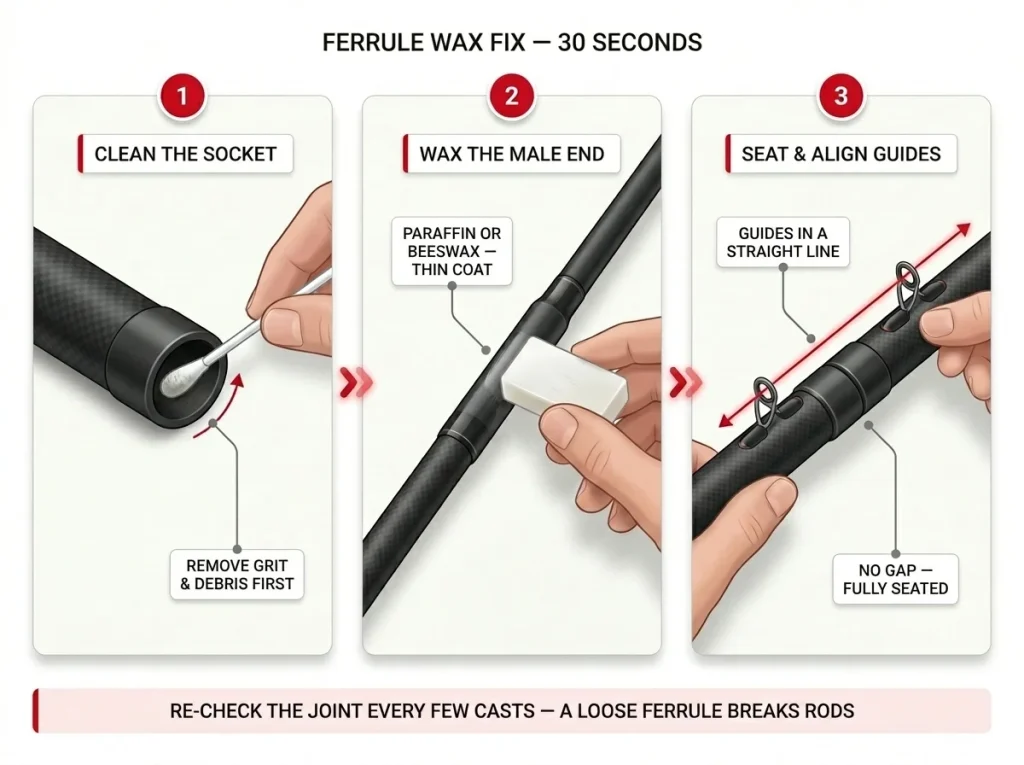

Proper ferrule care begins with cleanliness. Dirt and grit are the primary causes of sticking and premature wear on these multi-jointed rods. The cleaning procedure is simple: use a cotton swab dipped in isopropyl (rubbing) alcohol to clean the inside of the female ferrule (the larger, hollow section) until the swab comes out clean. Wipe the male ferrule (the section that inserts) with a soft cloth and alcohol.

Once clean, the lubrication protocol is entirely dependent on the material. For modern graphite or fiberglass rods, which use a “tip-over-butt” ferrule where the upper section slides over the lower, the correct “lubricant” is a light application of paraffin wax (a simple candle will do) or a specialized ferrule wax. This acts as a dry lubricant, preventing wear and ensuring a snug, non-twisting fit. It is crucial to debunk the old myth of using skin oil from your nose or hair. This was a practice for old metal ferrules, and on modern materials, the oil simply attracts grit that accelerates wear. For classic metal ferrules, found on bamboo rods, oil should also be avoided as it can cause corrosion. The best lubricant for them is a dry bar of non-abrasive facial soap. Emphasizing proper care prevents the joint from loosening during casting or becoming hopelessly stuck, turning your convenient multi-piece rod into a frustrating one-piece rod. By mastering the care of each individual component, from the blank to the ferrule, you build not just a reliable tool, but a deeper connection to the sport itself.

Conclusion

A fishing rod is a beautiful piece of engineering, a system where the blank’s material and taper dictate performance, the handle assembly provides control and feel, and the guides manage the connection to the fish. High-modulus graphite allows for lighter, more sensitive rods, while component-level maintenance—clean ferrules, crack-free guides, a solid reel seat—ensures that sensitivity is never compromised.

Understanding these fishing rod parts transforms you from a simple user into a true owner, capable of making informed purchasing decisions and performing the essential repairs that extend the life of your gear. Your rod is now an open book. Take a moment to inspect its components, clean its ferrules, and check its guides. A deeper understanding of your equipment will only improve your fishing skills and lead to a more successful fishing experience. Share what you discovered or your own go-to maintenance tip in the comments below.
