The graphite exploded at 6 a.m. on the final morning of the trip. Not from a trophy fish — from a hook wrap on a boat cleat the night before. The rod had been fishing fine all week. It was not fine. It was gone, and nobody had told it yet.
I’ve guided on these waters for two decades, and that scene plays out more than it should. The blank was compromised the moment it hit that cleat. It carried three days of structural debt, load by load, until one hookset collected the bill. The break looked random. It wasn’t.
Here is exactly what you need to know to catch it before it catches you.
⚡ Quick Answer: Run four checks before every trip: rotate the blank under a focused flashlight and watch for interrupted reflections; tap every three inches with a coin and listen for a dull “thud” against the baseline ring; slide your fingers butt-to-tip and then tip-to-butt over every section; finally, load the rod to 90 degrees and stop immediately if you hear a click. Any single failure in that sequence means the rod stays home. Over 95% of rod breaks are preceded by detectable damage. The blank told you. You just need to know the language.
The Material Science Behind Why Graphite Blanks Crack
Modern graphite rod blanks are not homogeneous like steel or bamboo. They are composite materials built in layers — and their strength runs in one direction but not the other. Longitudinal fibers carry bending load along the length of the blank. Hoop fibers resist the tube collapsing into an oval when bent. Neither fiber group can do the other’s job.
The trade-off no one explains when you’re buying a rod: as stiffness rises — IM6 to IM7 to IM8 — the blank gets stiffer, lighter, and more sensitive. It also gets less forgiving. A Toray or Hexcel IM8 blank that deflects a centimeter under load will fail at a lower force than an IM6 blank deflecting three centimeters. When you’re selecting a rod by carbon fiber modulus, you’re buying performance and paying for brittleness.
The epoxy resin matrix holds the fibers together and transfers stress between them. Without the resin, individual fibers act independently and snap in sequence. Manufacturing voids — “dry spots” where the resin didn’t saturate during rolling — create zones of zero strength between layers. You can’t see them on the surface. They delaminate quietly over time.
Pro Tip: A blank that can lift 30 lbs will fail under half a pound if the surface skin fibers have been fractured. Score glass and it snaps at the score. Same principle.
Longitudinal Fibers, Hoop Strength, and Why Both Must Survive
Damage to the longitudinal fibers means catastrophic loss of flex strength. Damage to the hoop fibers means the tube silently loses its ability to resist oval deformation — and it will fail suddenly under compression rather than gradually. A “flat spot” you feel under a slow bend is not a cosmetic scratch. It is the signature of compromised hoop strength. Run every rod through a slow static flex before fishing. Flat spots reveal hoop damage that light reflection completely misses.
The Resin Matrix — Where Silent Failures Originate
The epoxy resin is what keeps the fiber layers working as a unit rather than slipping past each other. “Dry spots” during the curing process leave voids with no interlaminar strength — those voids delaminate under repeated loads long before any surface sign appears. UV exposure breaks down the polymer network, forming surface micro-cracks that let moisture in. Once moisture gets into the laminate, peer-reviewed research on carbon fiber composite degradation shows tensile strength reduction of up to 40% and stiffness loss of 20–30%. A faded finish is not cosmetic. It signals resin breakdown that has been ongoing long enough to discolor the surface — and long enough to matter structurally.
Why Higher Modulus = Lower Margin for Error
When a high-modulus blank takes a sharp impact, the surface fibers shatter into microscopic fragments. The blank looks fine. The fibers are not. That damage is permanent. There is no healing. The next load concentrates at the bruise, and the next, and the next — until the micro-fracture meets a load it can’t distribute any further. This is also why why graphite rods crack while fiberglass bends is not a marketing question — it is a physics question. Glass deflects around damage. Graphite concentrates it.
Diagnostic Protocol Level 1 — The Visual and Magnified Forensic Inspection
Here’s where most anglers fail the test before it starts: they inspect rods under overhead light in a garage. That tells you almost nothing. You need a focused, directional source — a headlamp or flashlight — and a darkened area. Overhead fluorescents scatter light evenly and wash out the texture variations that indicate damage.
The Light Reflection Technique works like this: rotate the blank slowly under the focused beam and watch the reflection, not the blank surface itself. A structurally sound blank reflects a smooth, continuous arc of light across its circumference. Any interruption in that arc — a flat spot, a matte patch, a ripple — means stop and investigate. As supported by the North Fork Composites rod failure forensic analysis, spider-web cracks in the resin, dull patches indicating localized delamination, and subtle geometric flat spots are all surface-readable before the rod ever breaks.
The fore and aft contextualization rule matters here. A scuff near the handle is low-risk. The same scuff in the mid-section or upper third — the maximum flex zones — is a different conversation. Any nick deep enough to cut longitudinal fibers is a primary fracture point, not cosmetic damage.
Pro Tip: The discipline is slow rotation — full circumference — under one focused light source. 60 seconds per rod section. Most guides scan in five seconds and move on. That is not an inspection.

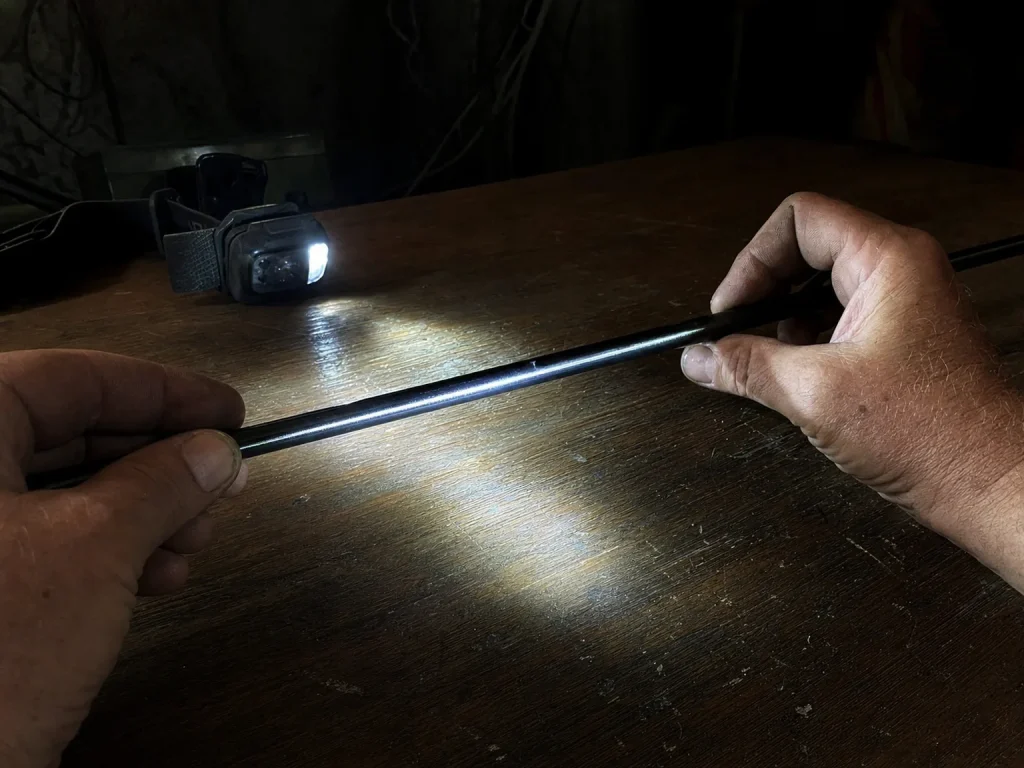

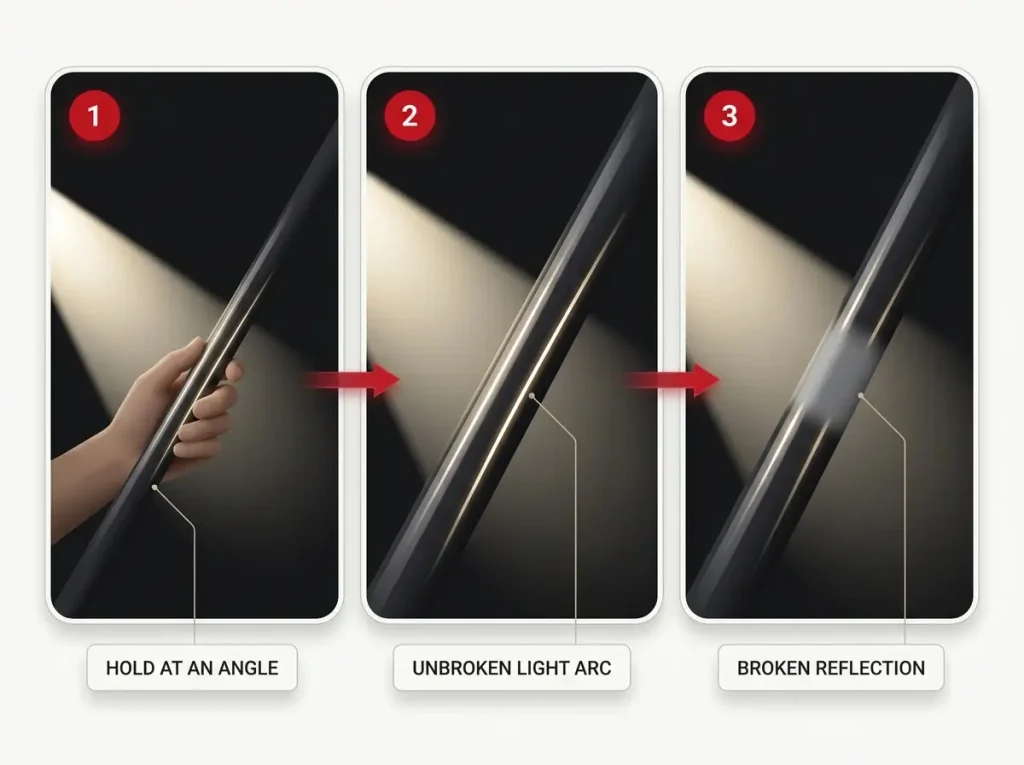

The Light Reflection Technique — Step by Step
Set up in shade or a darkened space with a single focused beam. Hold the blank at 45 degrees to the light source. Rotate it across a 3-inch segment, examine, then advance. Work butt to tip. Record every anomaly — a photo on your phone works fine — before moving to the acoustic test. Macro-inspection of any flagged area comes next.

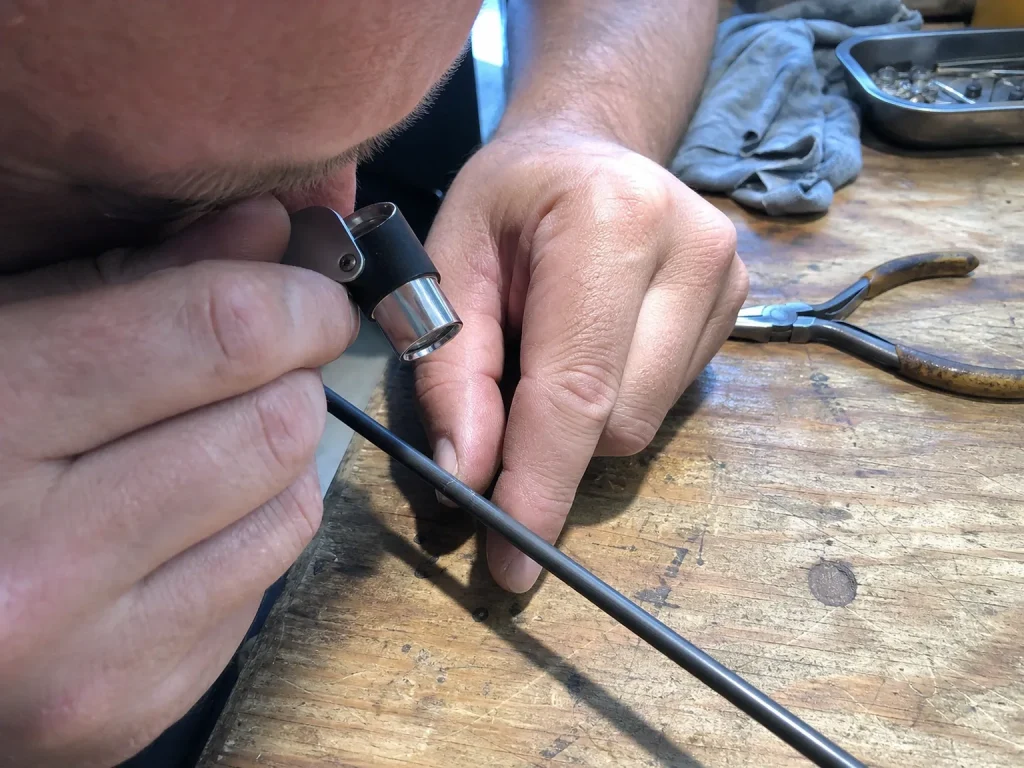

Macro-Inspection — The Jeweler’s Loupe Protocol
For any IM7 or IM8 rod, a naked-eye check is not enough. Wall geometry is too thin. Use a 10x jeweler’s loupe or a smartphone macro lens over every suspicious zone. What you’re looking for: whitening or opacity in the carbon fiber lattice (shattered filaments), fiber ends protruding above the resin surface, and micro-cracks radiating outward from a central impact point. On IM8+ blanks, impact bruising can affect a 3mm radius around the actual contact site. Map the full zone.

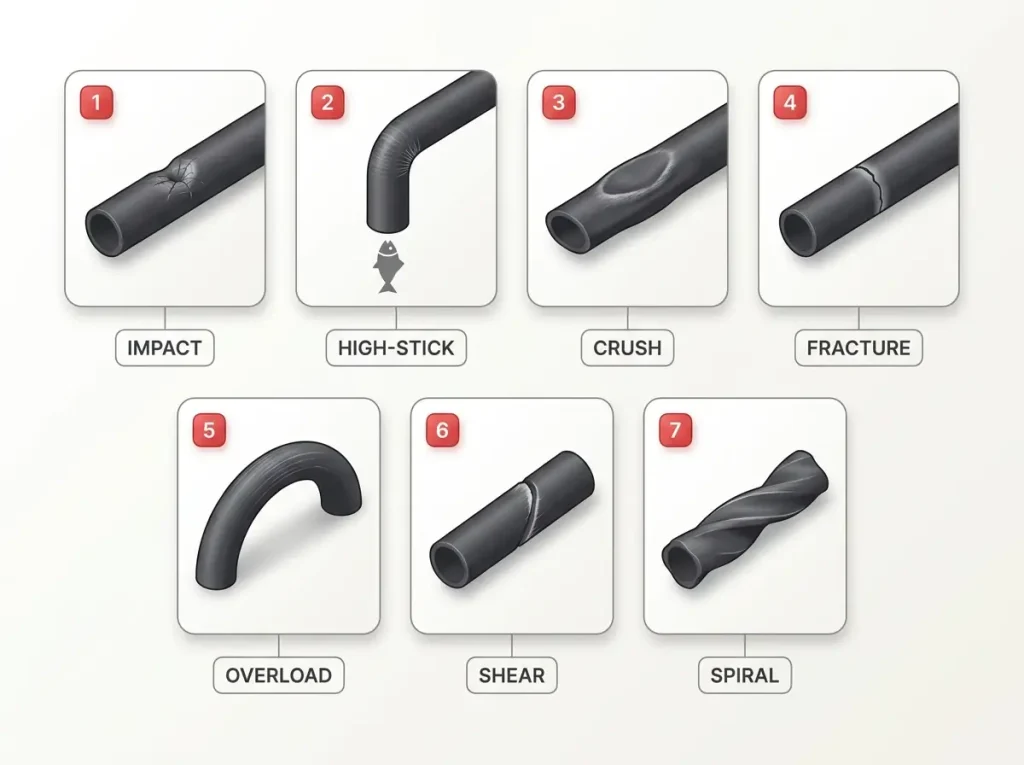

Forensic Taxonomy — Reading What the Break Pattern Tells You
When a rod does break, the break pattern tells you exactly what happened:
- Impact failure signature: Clean, straight break with beveled edges at the damage site. The “scored glass” snap.
- High-sticking signature: Irregular, jagged break with distressed fiber ends visible on the interior wall. Always in the upper half of the rod.
- Crush failure signature: Long lengthwise splits extending from the primary break. Result of transverse pressure — stepped on, car door, boat hull.
- Overload signature: Extreme distress on both walls, often a double break simultaneously. A structurally sound rod pushed beyond design geometry.
Identifying the failure type matters for warranty claims and, more importantly, for preventing the next identical break.

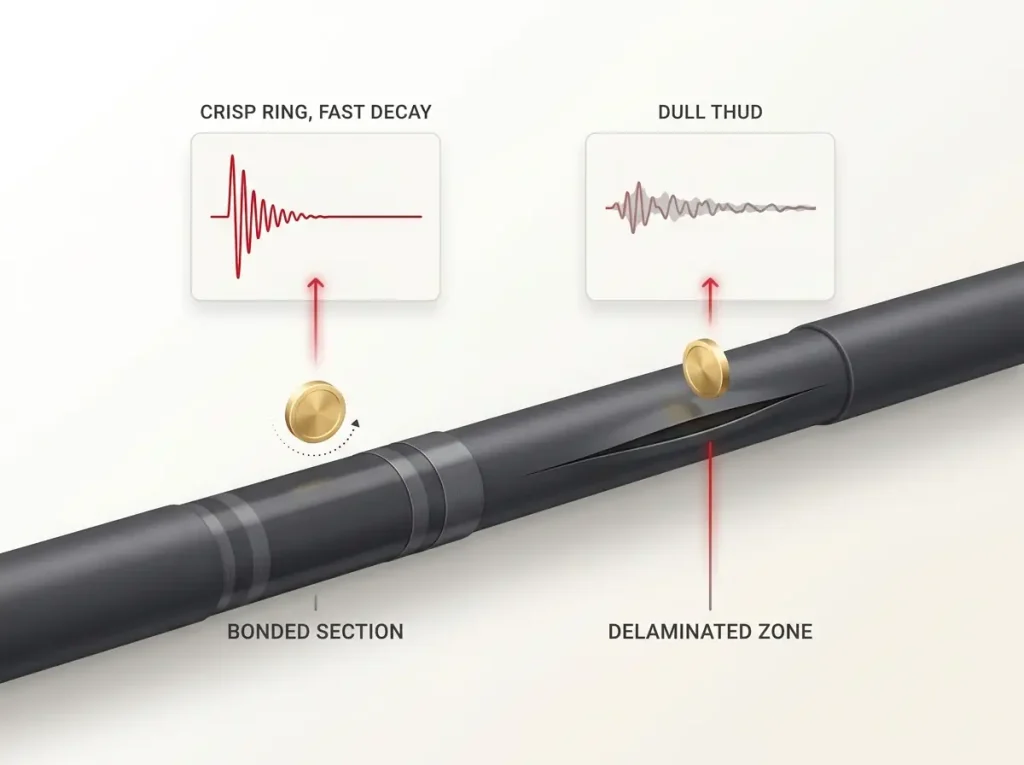

Diagnostic Protocol Level 2 — Acoustic Resonance and the Coin Tap Test
The acoustic tap test is not fishing folklore. It is validated non-destructive testing methodology used in aviation to inspect carbon fiber aircraft wings and fuselages. The physics are the same; only the scale is different.
A healthy blank with fully bonded fibers and resin vibrates as a single mass when struck. You get a crisp, high-pitched ring with fast decay. A zone with internal delamination or a crack decouples the layers. The loose laminate absorbs the vibration’s energy, and the sound dies rapidly into a dull, “dead,” or “thuddy” tone. That tonal shift is the blank telling you something is wrong. The peer-reviewed research on coin-tap damage detection in composites confirms this principle is the same one aerospace quality control uses on high-value airframes.
The Physics of Natural Frequency — Why a Crack Changes the Sound
Every object has a natural resonant frequency set by its mass, geometry, and material stiffness. In a healthy blank, the carbon fibers and resin are mechanically coupled — the vibration propagates as a single wave through the full laminate and produces a high-frequency ring. In a delaminated zone, the layers are decoupled. Energy gets absorbed at the air-void interface instead of propagating, and the sound damps rapidly into a thud. Your ears, in a quiet space, are the instrument. Train them on a known-good rod first.
Execution of the Coin Tap Test — The 5-Step Protocol
- Select your excitation tool: a 50-cent piece, a 25mm steel washer, or a tap hammer under 2 oz.
- Establish a baseline ring at the handle section — consistent diameter, known-good material.
- Tap every 3mm, butt to tip, noting pitch and timbre. Pitch naturally rises toward the tip as the blank tapers; that is normal.
- Flag any location that produces a sudden “thud” relative to the surrounding baseline. A single localized dull zone is the signal.
- Tap a grid around flagged zones to map the boundary of the internal damage. Small zone — monitor. Large zone — retire.
Pro Tip: Run this test in a quiet garage with no ambient noise. Wind and a running outboard mask the subtle tonal shifts. If you can’t hear the difference between the baseline ring and a suspect zone, move to a quieter spot before making a call.
Interpreting Results and Setting Your Threshold
Crisp ring throughout: structurally sound. Single localized thud at a known impact site: critical risk, retire immediately. Multiple dispersed duller zones across the blank: accumulated structural integrity debt, retire. A pitch transition at a ferrule junction is normal — that is geometry change, not delamination. The connection between how guide material hardness relates to blank impact vulnerability matters here: a cracked ceramic guide insert concentrates load directly on the blank beneath the wrap, creating secondary damage that only shows up in the acoustic test.
Diagnostic Protocol Level 3 — Tactile Integrity and Guide Examination
Your fingertips detect surface irregularities measured in microns. This test catches what light and sound miss.
The Reverse Finger Slide works because “dig”-type nicks — created by objects striking the blank from the tip direction — feel smooth when you run your fingers toward the tip but sharp when you reverse direction. Apply firm, consistent pressure and move at roughly one inch per second from butt to tip, then reverse. You’re feeling for localized roughness, ridges, “steps,” and fraying fiber ends. Inspect the tip third and mid-section with extra attention — these flex zones compound damage faster under repeated loading.
For guide examination, run twisted cotton fibers from a standard cotton ball or a fanned Q-tip around the full inside circumference of every guide ring and the tip-top. One snagged fiber strand means the ceramic insert is cracked and that guide must be replaced before the next trip. A cracked SiC or Torzite insert acts exactly like a cutting tool under line tension. It frays the line and creates a stress riser that point-loads the blank directly beneath the guide wrap. This is also why hook placement on guide rings destroys ceramic inserts matters so much — the habit of resting hooks on the guide ring is one of the most consistent causes of insert micro-fractures.
The Reverse Finger Slide — Surface Damage Detection
Move at one inch per second with firm pressure. The reverse pass is the critical one. A step or ridge in the blank’s profile — something that catches the pad of your fingertip rather than sliding under it — indicates either a loose manufacturing roll or a delaminated edge beginning to lift. Manufacturing defects like loose rolls create obvious spiral indentations in the surface; those are not the same as impact digs, but both demand the same response: acoustic confirmation.
The Cotton Ball Guide Test — The Definitive Ceramic Inspection
Fan the tip of the Q-tip for maximum fiber coverage. Run the full circumference of each guide ring, not just a swipe across the center. A crack can exist anywhere on the 360-degree inner surface of the ring — a straight-line pass misses most of the risk area. Check tip-top with particular attention; it takes the highest frequency of lure-impact contact during casting.
Ferrule and Joint Integrity — The High-Stress Connection
Assemble the rod and feel for smooth, click-free seating. Any grinding during assembly means grit or salt crystal buildup — disassemble, rinse in fresh water, dry completely, and apply beeswax ferrule wax before reassembly. A ferrule seating 1–2mm shallower than normal after repeated use signals micro-deformation of the male end. Inspect that male section under magnification for hairline cracks before fishing it. Salt crystals in saltwater ferrules are harder than the resin matrix and score the blank incrementally with every assembly cycle. Rinse, dry, wax — every time.

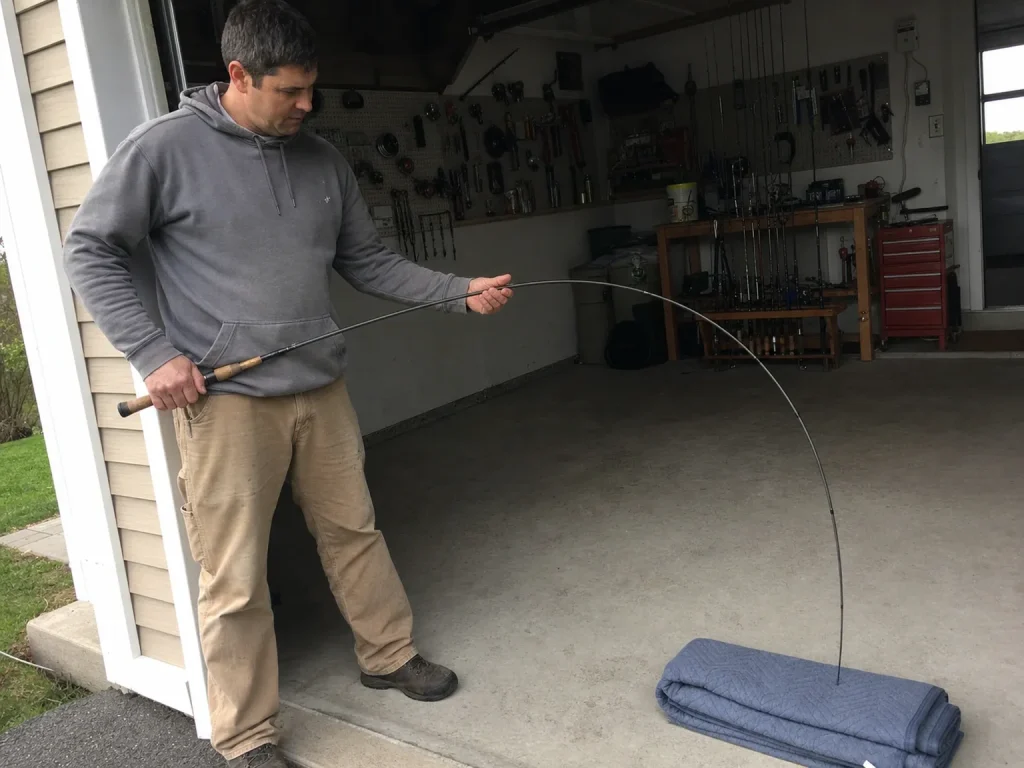

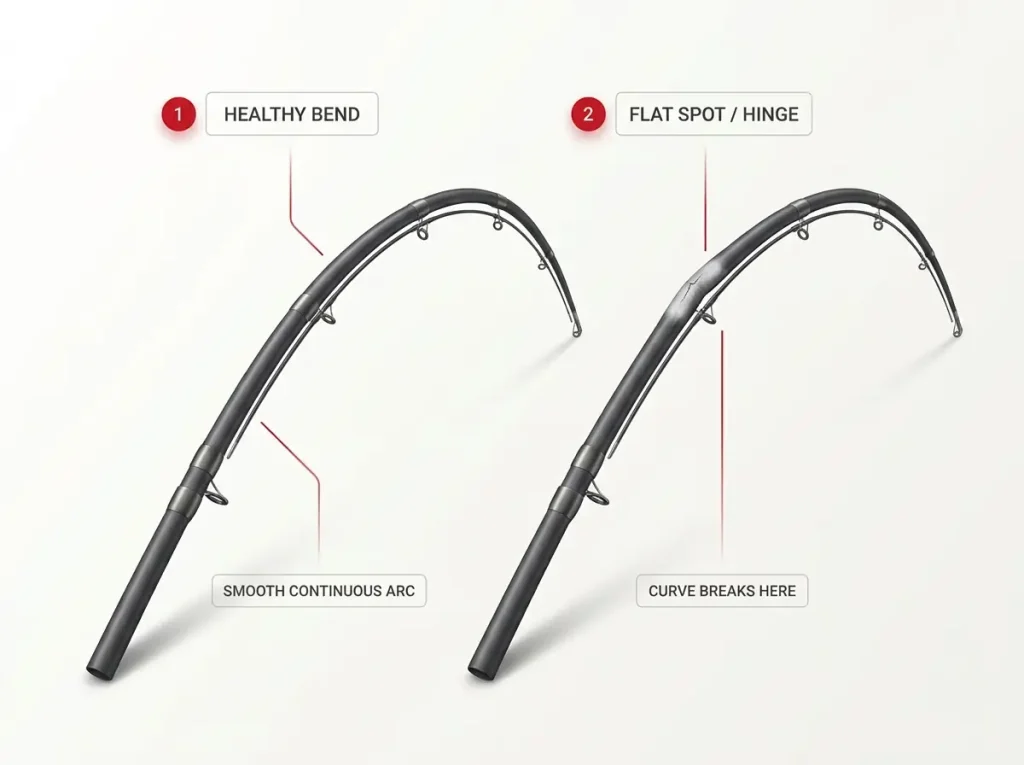

Diagnostic Protocol Level 4 — Static Load Validation and the 90-Degree Bend Test
The static load test is the final confirmation. If the rod is going to fail, you want it to fail here, not on the water in front of a fish that took two hours to locate.
The 90-degree geometry is where rod strength becomes a matter of angle, not just rating. Under a normal load at a shallow angle, the stress distributes along the blank’s full length. At 90 degrees, the lever arm collapses. The full load concentrates at the bend apex. This is why high-sticking — holding the rod past 90 degrees into a load — is how most catastrophic failures happen. A blank rated for 20 lbs at 45 degrees may fail at 8 lbs at 90. Understanding this is not caution; it is geometry. The physics of load distribution across a rod’s length explains exactly why that angle matters as much as the weight on the end.
Run fishing line through the guides before the static load test — you’re also checking guide foot stability under flex. A guide foot that lifts during the bend indicates structural compromise in the blank beneath that guide wrap.
Auditory and Visual Warning Signals During the Test
Listen for any click, pop, or crackle as the rod loads. These are acoustic emissions from resin matrix cracking or individual fibers snapping. One click equals one answer: retire the rod. Watch the bend arc for flat spots — any section that remains straight while adjacent sections curve is a zone of lost hoop strength, and that is exactly where the blank folds inward and bursts under a subsequent load. After releasing the bend, check whether the blank returns to perfectly straight. Any residual curvature — any “set” — means the resin matrix has permanently deformed.

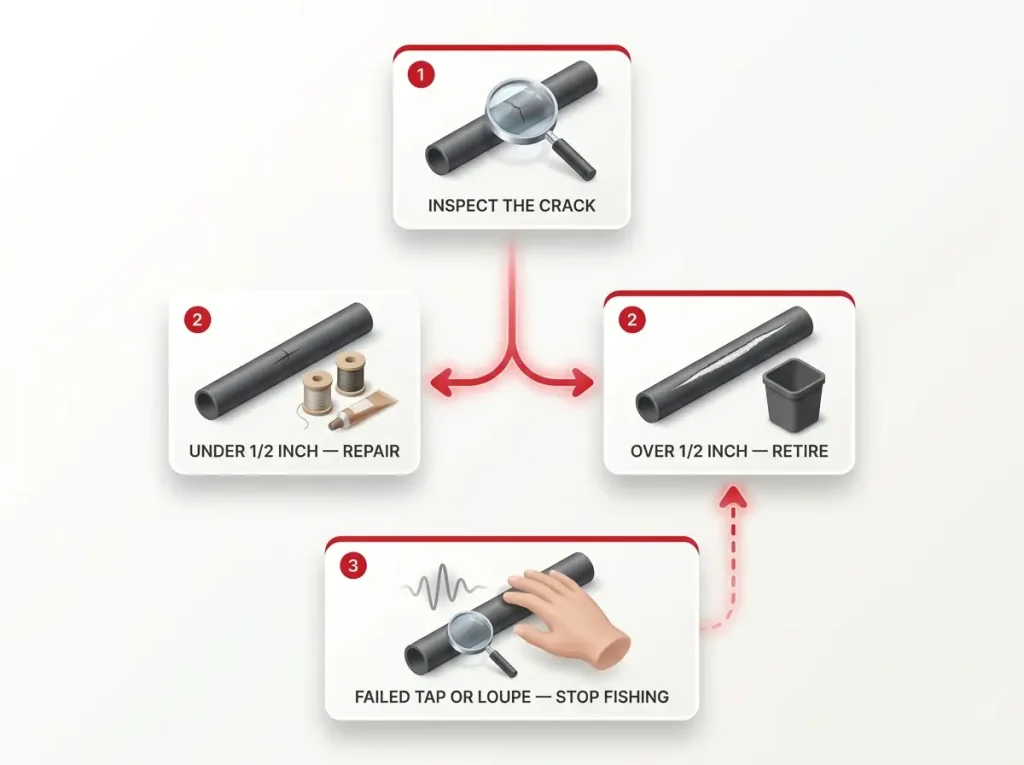

Triage and the Retire-or-Risk Decision Matrix
| Forensic Finding Analysis | ||
|---|---|---|
| Forensic Finding | Risk Level | Action |
| Uniform reflection; crisp acoustic ring; smooth flex | None | Proceed with use |
| Cosmetic scuff in clear coat; no tonal change | Low | Monitor; apply touch-up resin if deep |
| “Dead” thud in tap test; visual blemish present | Critical | Retire immediately |
| Visible lengthwise split from crush | Critical | Retire immediately |
| Click or crackle during 90-degree load | Critical | Retire immediately |
| Cracked ceramic guide insert | High | Replace guide before next use |
| Loose ferrule with grit or click | Medium | Clean/wax and re-test |
If the rod is still in what manufacturers call the “nursery period” — the first few outings — any structural failure warrants warranty review. But be honest about it. A ceiling fan strike or a boat rail hit is not a manufacturing defect. Companies like St. Croix and G. Loomis now offer no-fault replacement programs for a fee, recognizing that graphite is a precision instrument, not a production tool. Read what manufacturers look for when they inspect a broken rod before you make that call.
The Pre-Trip Silent Hazards — Environmental and Transportation Damage
Here’s the thing anglers consistently get wrong: you’re more likely to damage your rod going to the water than fighting anything in it. The fish didn’t snap that rod. The truck bed did.
Vibrational bruising — also called “rod slapping” — happens when rods travel in contact with each other in a rack or truck bed. A moving vehicle vibrates continuously, and the rods tap against each other or the hard rod holder surface hundreds of times per minute. Each tap is a micro-fracture event in the tip section — the thinnest wall geometry on the blank, with the greatest oscillation amplitude. Over a two-hour drive, that compounds into a significant weak point.
The fix costs three dollars. Cut a pool noodle lengthwise and slip it over the rod bundle. No rod-to-rod contact. Alternatively, use the proper rod storage to prevent vibrational bruising methods that apply year-round, not just in transit.
UV degradation of the epoxy resin is slower but equally real. Sustained sun exposure breaks down the polymer cross-links, creating surface micro-cracks that act as moisture entry points. A faded blank finish signals resin breakdown that has been ongoing long enough to discolor the surface — meaning it has been ongoing long enough to matter structurally. Use rod socks during transport. It takes ten seconds.
Salt ferrule protocol is non-negotiable for anyone fishing saltwater: rinse ferrule connections in fresh water after every trip, dry completely, apply beeswax before storage. Salt crystals are harder than the resin matrix. Inspect ferrule male sections under magnification for parallel scoring lines — tiny scratches running along the blank’s axis. When you see them, that ferrule is already working against you. Check out protecting graphite blanks during off-season storage for the full seasonal protocol.
Pro Tip: More rods snap from ceiling fans and car doors than from fish. Always carry a rod butt-first through doorways. Tip-first catches the frame and the momentum of your body creates a point load the blank was never designed to handle.
The Pre-Trip Rod Audit as a Professional Discipline
Adopt the 60-Second Rule: before every trip, run a visual sweep plus tap test plus cotton ball guide check on each rod you plan to fish. After returning, inspect immediately while the memory of any handling incidents is still fresh. A rod that hit the gunwale during a cast — did you notice? You probably did, and then forgot. Don’t forget.
Document anomalies. A logbook entry for each rod’s condition baseline allows trend tracking. “Hairline at Section 2, depth stable” is information. “Hairline at Section 2, grown 4mm since last trip” is an answer. Manufacturing defects fail on the first significant load. A rod that has survived 10 trips and then breaks was not born broken — it accumulated structural integrity debt across those trips until the balance came due.
Conclusion
Three things to carry off this page:
First, 95% of rod breaks are preceded by detectable damage. The blank told you. It told you with a flat spot under a slow flex, a dull thud under a coin tap, a catch in the cotton ball test. You just didn’t hear it yet. Now you have the protocol to hear it every time.
Second, the 4-Point Protocol takes five minutes. Visual sweep, coin tap, finger and guide check, 90-degree bend. Five minutes per rod before a trip. That is a pre-flight checklist for a precision instrument — and that is exactly what a high-modulus graphite blank is.
Third, high modulus means zero margin for error. The same construction that makes an IM8 feel like a telegraph wire makes it fail without warning once the surface skin is compromised. The brittleness paradox is built into the physics. The four-point diagnostic protocol is the only countermeasure that costs nothing.
On your next pre-trip prep, run the tap test on every graphite rod in your quiver. You will likely find at least one rod that sounds suspicious. That rod owes you nothing except honest information. Act on it. The fish will wait.
FAQ
How do you tell if a fishing rod is cracked or just scratched?
A scratch only affects the clear coat or resin surface and produces no tonal change during the coin tap test — the ring stays crisp. A crack or bruise ruptures the carbon fiber lattice beneath and produces a dead or thuddy sound during tapping, especially relative to a clean baseline ring established on an undamaged section. Run the tap test first; use the jeweler’s loupe second to confirm fiber displacement if the acoustic test flags an area.
Can you fish with a micro-cracked rod blank?
No. Structural integrity in high-modulus graphite is binary — intact or compromised. A confirmed delamination or impact bruising zone is a stress riser waiting for a sufficient load. Even a load well under the rod’s rated capacity can trigger catastrophic failure if applied at the damage site. The risk-to-reward calculation here is not complicated.
Why did my fishing rod snap in the middle with no warning?
The blank gave warning — it was silent. Over 95% of mid-section breaks trace back to a prior impact that created a stress riser: a boat rail, a lure hit, a car door. Each subsequent cast propagated the micro-fracture slightly further until one hookset exceeded the remaining structural threshold. No warning means the four-point diagnostic protocol was not performed before that trip.
Does high-sticking always break a rod?
Not immediately — and that is the hazard. A single high-sticking event may not produce visible damage but can initiate internal delamination in the compression fibers of the upper section. No external mark. Each subsequent high-stick incident extends the damage until the eventual failure appears random. Apply the acoustic tap test to the upper third of any rod that has experienced a high-stick event before fishing it again.
What is the correct way to store graphite fishing rods to prevent damage?
Tip-up vertical storage prevents longitudinal set from resting the rod horizontally with contact points at both ends. Rod-to-rod separation is the higher priority — vibrational bruising from transport is the primary cause of cumulative tip damage. Use individual rod sleeves or a pool noodle buffer. Store away from sustained UV exposure and moisture. Rinse and inspect ferrule joints for salt crystal scoring after every saltwater trip.
