The fishing rod blank in your hand isn’t just a static stick. Think of it as a spring under tension, waiting to snap back. When you hook a fish and the rod bends, it wants to twist. It naturally seeks the path of least resistance, just like water flowing downhill.
If your rod components fight this natural rotation, the rod twists in your hand. That rotational torque transfers directly to your wrist. Instead of fighting the fish, you end up fighting your own fishing gear.
I learned this the hard way years ago. I was battling a striped bass in heavy current, and my wrist gave out before the fish did. I was fighting the rod’s natural desire to rotate the entire time. Understanding the spine—sometimes called the spline by old-school rodmakers—changes you from someone who just buys tackle to someone who truly understands the physics of the blank.
This technical long-form guide explains the real manufacturing physics behind custom rod building. We will look at why fishing rods have a spine, how to find it, and how to set up your rod guides so the tool works with you, not against you.
What is the Physics Behind a Rod Blank’s Spine?
How does the manufacturing process create the spine?

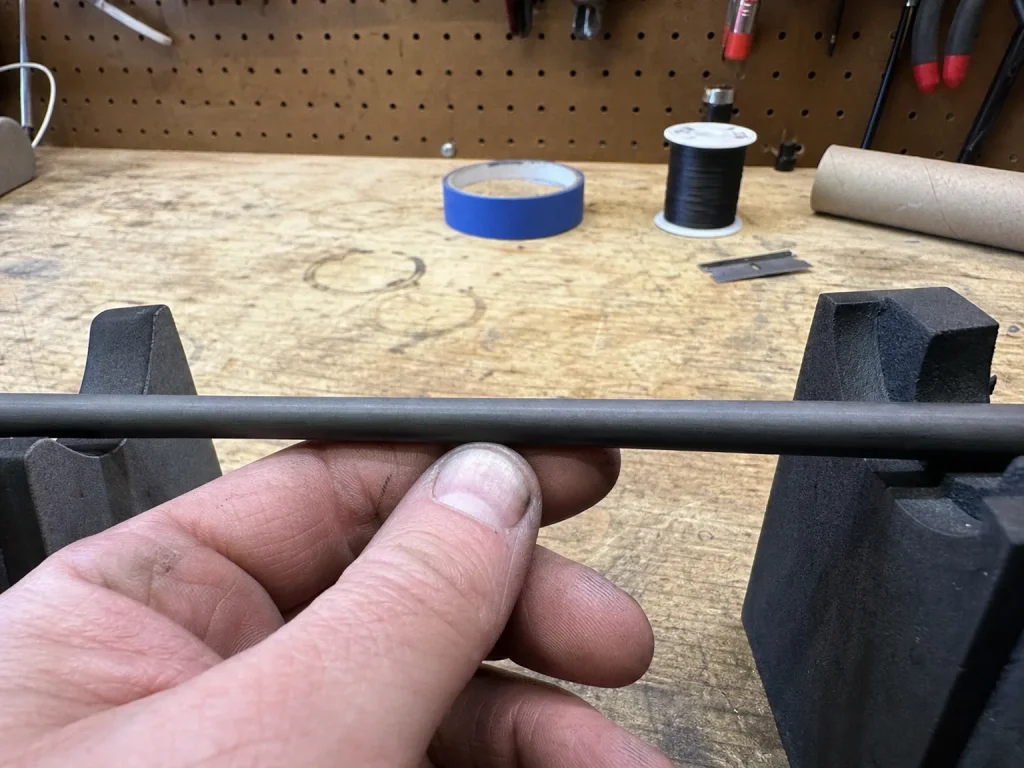

The spine isn’t a defect. It’s actually a normal result of fishing tackle manufacturing. To build a rod, manufacturers take a flat sheet of material—usually graphite, carbon fiber, or fiberglass—and roll it into a tapered tube.

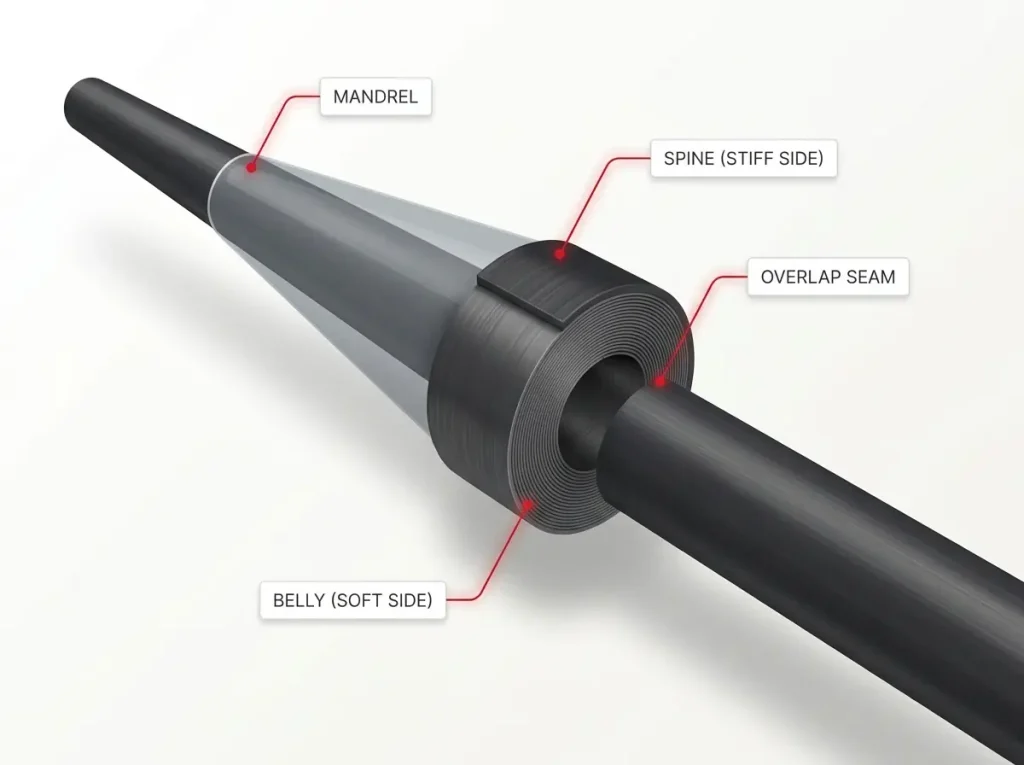

The core of a rod is the steel mandrel, a long metal rod that gives the blank its shape. A “flag” of material is wrapped tightly around this core during the mandrel wrapping process.
Here is where the spine happens. The flag is cut into a specific shape, usually a trapezoid. Because it has a starting edge and an ending edge, it can’t wrap around the steel mandrel perfectly evenly. There will always be a spot where the material overlaps. This creates a seam running down the length of the rod where the wall thickness is effectively double that of the adjacent areas. This uneven wall thickness is the key.
When the rod is heated and cured, this unevenness is baked right in. The result is a tube that possesses different flexural strength depending on which way you bend it. Even if the parts of a fishing rod look perfectly round from the outside, the internal structure varies. Even modern high-tech blanks from brands like Seeker or FishMHX have this density variation. For those interested in the deep science, nonlinear analysis of bonded composite tubular structures confirms how stress moves unevenly through tubes like this.
Why does the rod “jump” or “pop” when rolled?

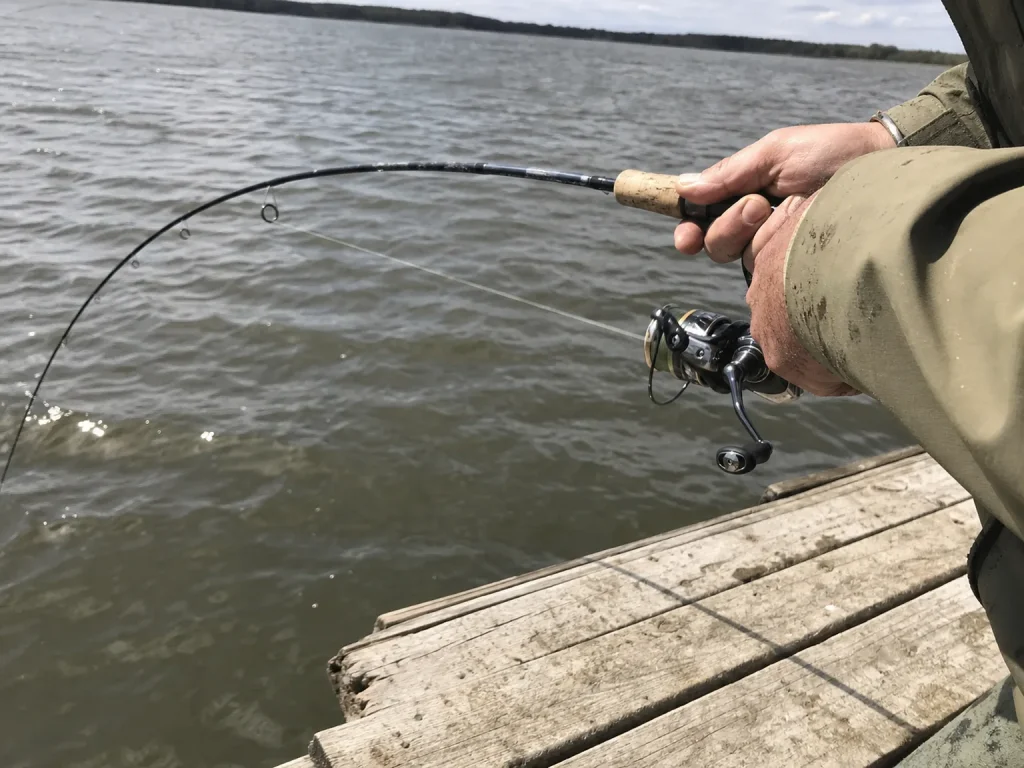

When you bend a tube that has uneven wall thickness, it wants to settle into a comfortable position. It automatically tries to find the path of least resistance.
The rod will rotate until its soft side (the side that bends easiest) is on the inside of the curve. You can feel this rotation as a sudden “jump” or “pop” in your hands. It snaps into its stable position.
This distinguishes the Inside Curve (the soft side) from the Outside Curve (the stiff side). If you force a rod to bend against this natural bend without guides to hold it straight, it creates torque. It will constantly fight to twist back to that stable spot.
This connects directly to how rod power and rod action work. The spine dictates the direction that power wants to go. Recognizing this “pop” using the roll and pop method is the most important skill in rod building. You can look into the mechanics of moment of inertia in structural beams to understand why the rod seeks this balance, but feeling it in your hands is what matters most.
How Do You Accurately Locate the Spine?

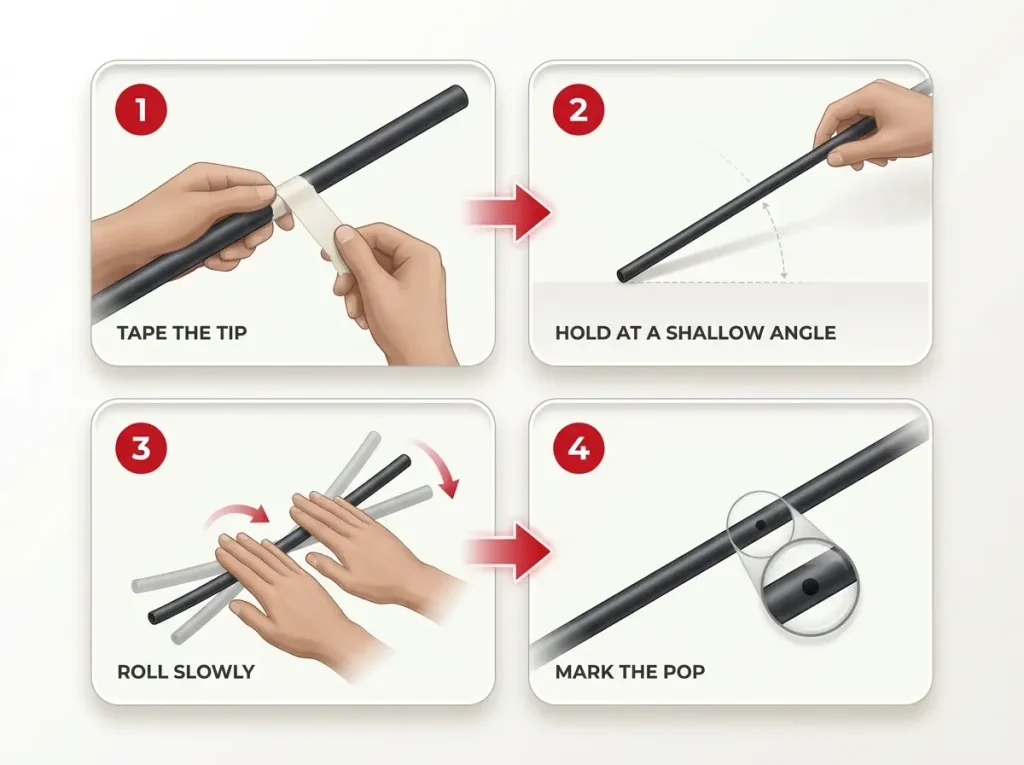

Can you find the spine using the manual “Flag Method”?
Yes, you can. The manual rolling method works well for most freshwater rods, especially the flexible tip sections.

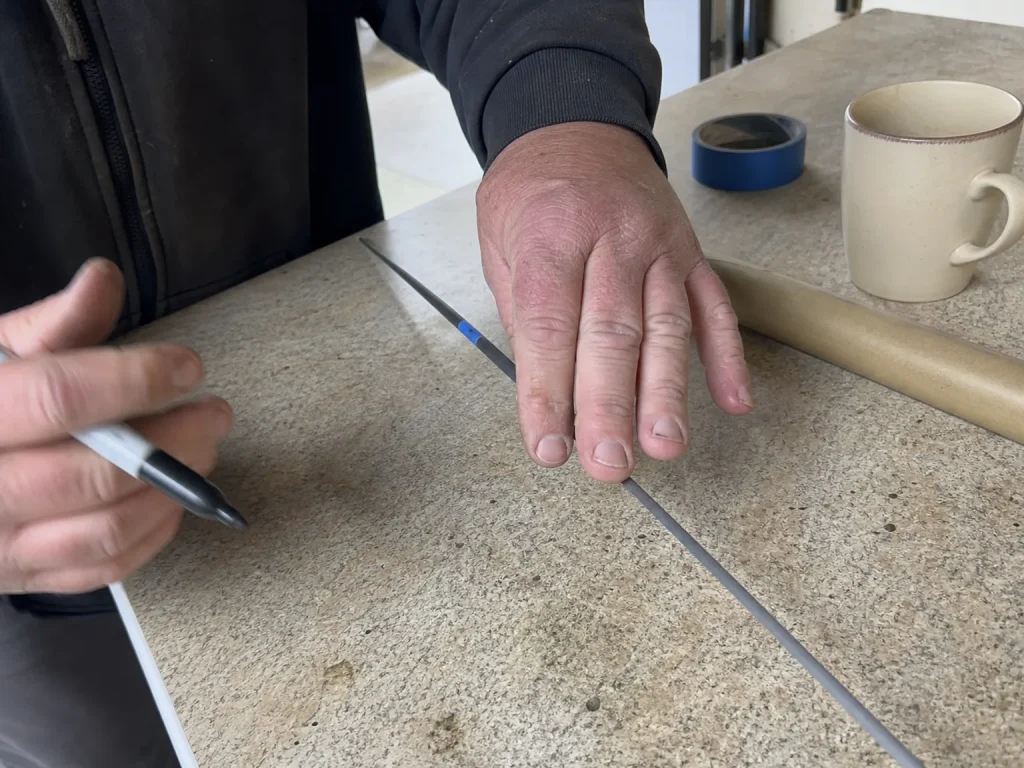

Start by wrapping a strip of masking tape around the center of the rod section. Leave a piece of tape sticking up like a flag. This gives you a visual spine indication to see the rotation.
Place the butt of the section on a smooth surface—a smooth counter or linoleum floor works best. Support the upper third of the rod with your open palm. Apply downward pressure gently to flex the rod while rolling it back and forth on the floor. Watch the tape. As the rod “locks” into its natural bend, the flag will snap to a specific angle.
The position where the rod resists rotation is the spine. Mark the inside of the curve (the side facing the floor) with a China marker, grease pen, or Chinagraph pencil.
Be aware that this method can be tricky with stiff butt sections. The friction between the rod and the floor can hide the subtle snap of the spine. The coefficient of rolling friction can act like a brake, stopping the rod before it truly finds its center. This is especially true with high carbon fiber stiffness, where the material is so rigid that bending it by hand is tough.

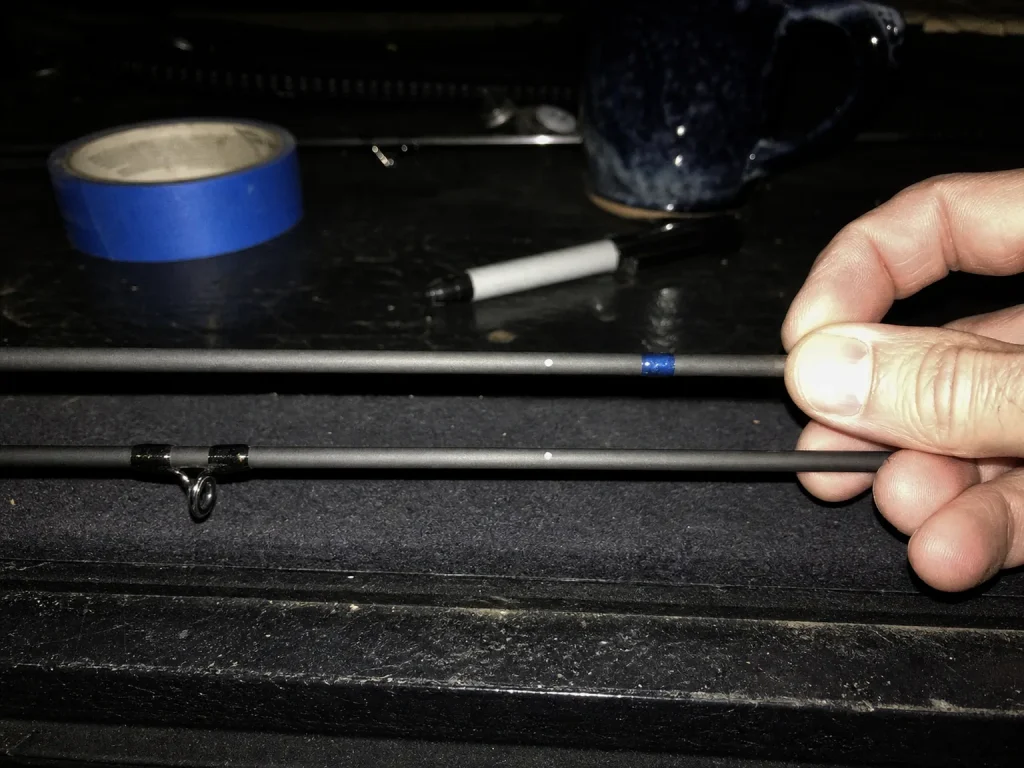

Pro-Tip: If you are spining a multi-piece rod, find the spine on each section individually before assembling them. The spines might not line up perfectly from one piece to the next. Knowing the axis of each piece lets you adjust them for multi-piece synchronization.
How do ball-bearing spine finders improve detection accuracy?

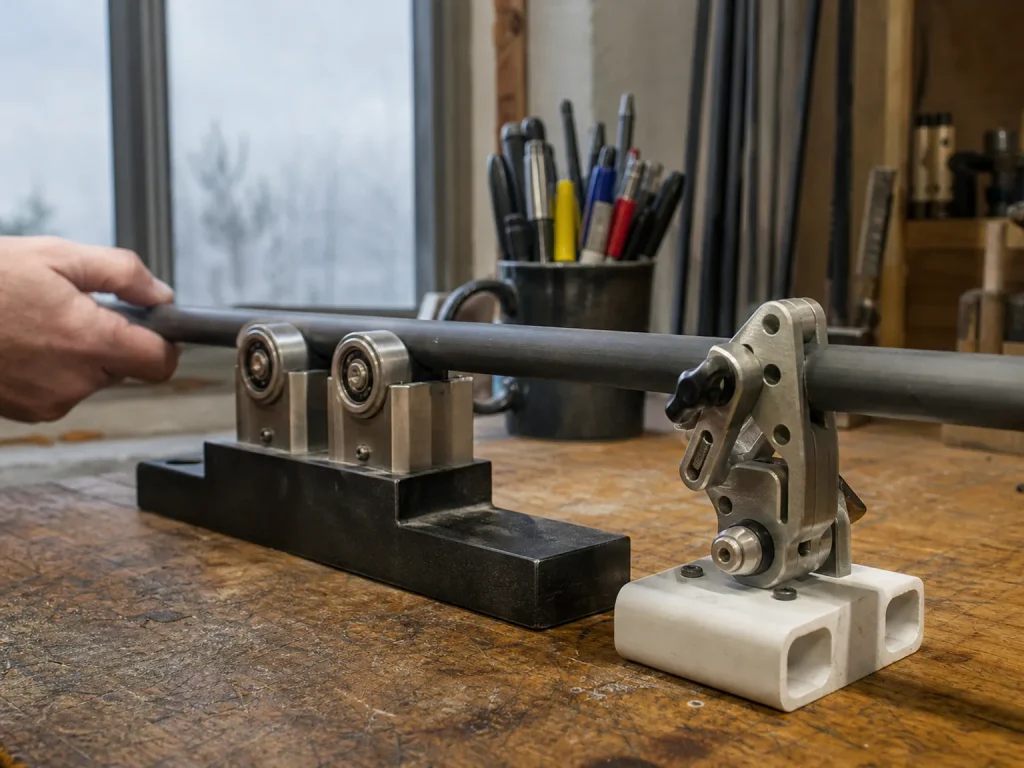

For precision work, or for heavy saltwater rods, you need a ball-bearing spine finder. These tools hold the rod blank on bearings that spin freely.
By getting the rod off the floor and removing friction, the rod is free to move. Even the slightest difference in wall thickness will cause the rod to rotate. You simply press down on the suspended blank, and it automatically spins to its most stable point. Using a spine finder will help pinpoint the exact location on your rod blank without the guesswork.
This is much safer for heavy rods. Bending a thick tuna rod by hand requires a lot of force, which can be dangerous. A tool makes it effortless.
Using the right essential fishing tools—whether it’s a commercial CRB spine finder, a tool from Mud Hole, or a DIY spine finder project using surplus bearings—lets you see the rod’s power curve while finding the spine. It helps you find “secondary spines”—minor stiff spots that might confuse you if you were doing it by hand. The principles of precision ball bearing mechanics ensure the rod settles on the true spine, rather than getting stuck on a “false” flat spot because of drag.

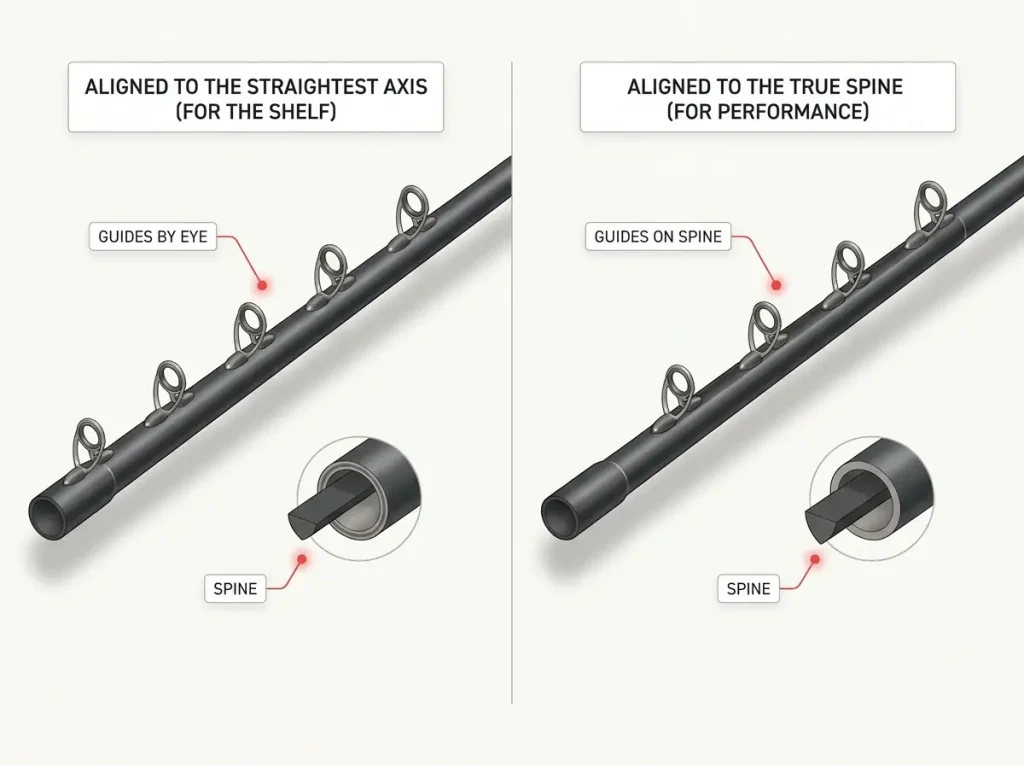

Spine vs. Straightest Axis: Which Alignment Should You Choose?
What is the argument for aligning with the spine?
The main reason to align with the spine is stability under load. When you line up the guides with the rod’s natural bend, the rod stays straight when loaded. It won’t try to twist in your hands.
This is huge for preventing fatigue. You don’t have to constantly grip tight to stop the rod twist. For a multi-piece rod, this is critical. If the sections twist, the joints (ferrules) can loosen and the rod can fly apart.
For heavy saltwater fishing or trolling, spine alignment is a must. The forces are just too high to ignore. You are treating the rod as a machine, prioritizing lifting power and how it performs during the fight. Understanding fishing rod levers and fulcrums helps you see how stopping that twist gives you a mechanical advantage. Plus, studies on the biomechanics of wrist torque confirm that less twisting means less chance of hurting your wrist.
Why do some builders prefer the “Straightest Axis”?
Many factory rods are built on the Straightest Axis. This is purely cosmetic. A rod that curves to the left or right looks bad on the store rack. Customers might think it’s broken, even if it works perfectly.
Some research, often discussed in RodMaker Magazine, suggests the straightest side is also the stiffest side, which might offer a tiny bit more strength. For very light fishing, like small stream trout, the torque is so small you won’t feel it. In these cases, having a rod that casts perfectly straight enhances casting accuracy.
The buckling of curved columns is an engineering concept that explains why straight columns hold more weight, which supports this theory.
However, modern rod blanks are made so well that the spine is less severe than it used to be. High-end makers like Scott Fly Rods, Winston, or Thomas & Thomas have tight tolerances. Choosing the straightest axis means looking down the rod to check for warp and ignoring the “pop.” Understanding graphite vs glass rods science explains why older fiberglass rods needed strict spine alignment, while modern carbon rods are a bit more forgiving.
How Does Guide Placement Change Based on Reel Type?
Where should guides sit on a spinning rod?

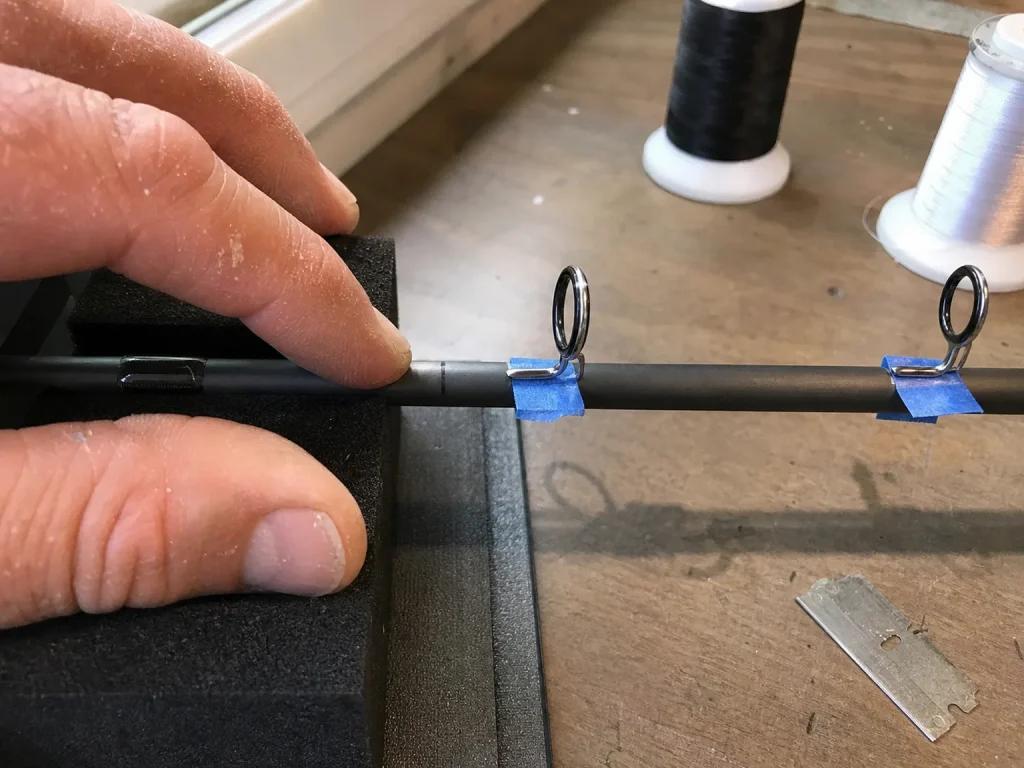

On a spinning rod, the reel hangs under the rod. Gravity is your friend here. The spinning guides should be placed on the Inside of the Curve (the soft side).
This 180-degree alignment creates a stable setup. The weight of the reel and the pull of the fish are both on the bottom. The rod bends toward the fish, and the guides move away from the blank. This prevents the line from slapping against the rod.
Because the load is underslung, the rod wants to stay upright naturally. Concepts of center of gravity and stability show us that a hanging load self-corrects. This is why the best spinning rods feel so balanced—the physics of the blank are working in your favor.
How do you align guides for a casting or conventional rod?
Casting rods are different. The guides sit on top. This is unstable, like trying to balance a ball on top of a hill. With an overhead reel, the rod naturally wants to twist over and dump the load downward.
On these rods, casting guides should be placed on the Outside of the Curve (the stiff side/spine). This 0-degree alignment helps the rod resist that twisting force.
While this puts the line on the “hard side,” it helps with lifting power. However, even perfect component alignment can’t totally stop torque on a casting rod. It’s a basic issue of torque and rotational motion; a top-heavy load is always trying to flip.
This is why many offshore anglers use a “Spiral Wrap” or “Acid Wrap.” This method starts the guides on top but rotates them to the bottom of the rod within the first few guides. This uses geometry to eliminate torque entirely. It’s something to consider when pairing a custom rod with one of the best baitcasting reels for heavy cover.
Pro-Tip: If you are building a heavy conventional rod and keep the guides on top, make sure your gimbal (the cross-slot at the bottom) is glued perfectly in line with the spine. If it’s off by even a few degrees, the rod will constantly twist in the rod holder.
The Finish Line
The difference between a rod that fights the fish and a rod that fights you often comes down to the invisible axis of the spine. Imperfections in mandrel wrapping make the spine unavoidable, but your ability to find it turns that imperfection into an advantage.
Whether you choose stability for a tuna rod or visual perfection for a fly rod, the key is making a decision matrix based on how the rod will bend under pressure. Don’t just assemble parts; build a tool. Start your next permanent rod building project by mapping the spine, and feel the difference in your casting distance and control.
FAQ – Frequently Asked Questions
What is the spine of a fishing rod?
The spine is the backbone of the rod blank. Because of how rods are wrapped during fishing tackle manufacturing, one side of the tube has slightly thicker walls than the other. This creates a stiff side and a weak side, causing the rod to naturally jump to a specific position when you bend it.
Is the spine the strong side or the weak side?
Technically, the spine (where the material overlaps) is the stiffest axis. However, the rod naturally wants to bend along the softest axis (opposite the stiff side). Most builders put spinning guides on the soft or weak side (inside curve) and casting guides on the stiff or strong side (outside curve).
Does building on the spine really matter?
Yes, mostly for stability under load. A rod built off-spine will try to twist in your hand when you are fighting a fish. However, for very light freshwater fishing, some builders ignore the spine and just build on the straightest axis so the rod looks better.
Why don’t factory rods align with the spine?
Factories usually build on the Straightest Axis so the rods look perfectly straight in the shop. If they aligned with the spine, many rods would look slightly crooked because of natural warping, and customers might return them thinking they are bent.
