How to Build a Custom Fishing Rod That Actually Performs

The blank was already spine-aligned, guides taped in place, thread bobbin loaded—and then I made the mistake every first-time builder makes: I mixed the epoxy like I was making scrambled eggs. Thirty seconds of vigorous stirring. Within twelve hours, the finish looked like a snow globe. I sanded it down, remixed, and spent another two days rebuilding what should have been an eight-hour session. That batch of mistakes is still the best education I ever got in rod building.

After building close to forty rods across three decades on the water, I can tell you this: a custom fishing rod is not a hobby project. It is a mechanical instrument. Every shortcut you take shows up on the water. This guide walks you through the complete process—with the physics and chemistry behind each step—not just a checklist.

⚡ Quick Answer: Building a custom fishing rod requires seven core steps: find and mark the spine, ream and fit the handle, install the reel seat, prep and file guide feet, run a static load test to place guides, wrap guides with thread, and apply finishing epoxy. The clearest performance gains come from mandatory spine alignment, static load guide placement over progressive spacing charts, and slow epoxy mixing to prevent bubbles. Expect 8–15 hours spread across 3–4 days due to cure windows you cannot skip.

7-Step Custom Rod Assembly — Quick Reference

1. Find & Mark the Spine
2. Ream & Fit the Handle
3. Install Reel Seat
4. Prep & File Guide Feet
5. Static Load Test & Tape Guides
6. Wrap Guides with Thread
7. Apply Finish Epoxy

The Physics of the Blank — Material Selection and Why It Matters

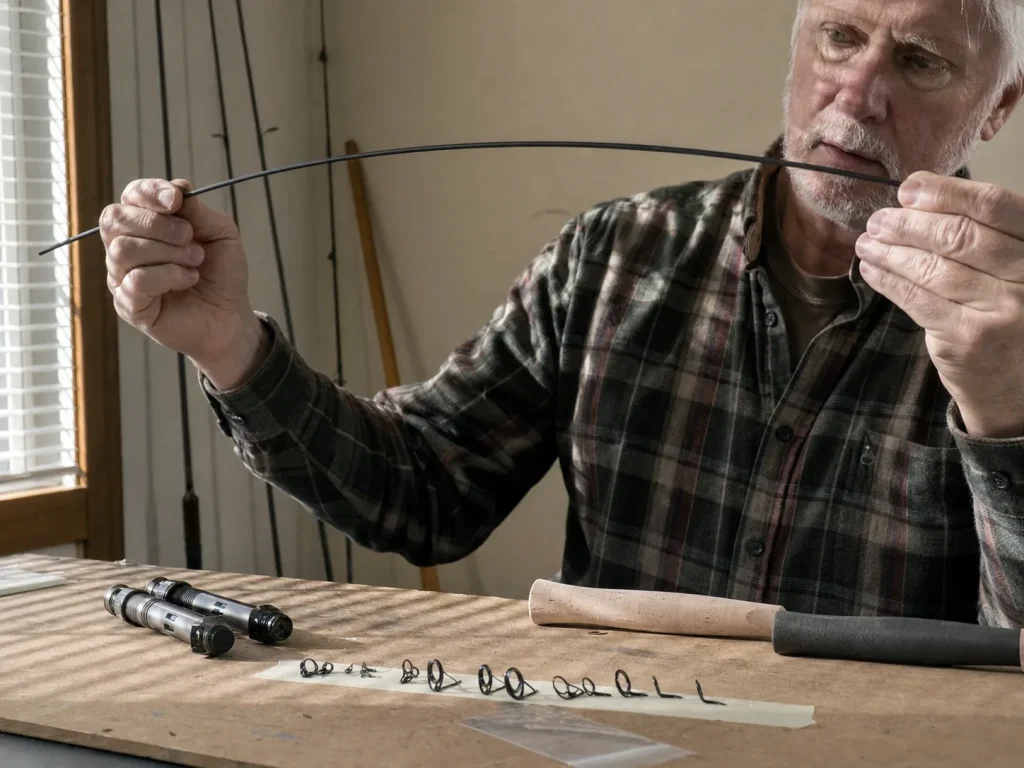

Most anglers shop blanks by price point or brand. That is exactly backwards. The blank is the rod. Everything else—guides, handle, reel seat—is hardware serving the blank. Start with the wrong material and no amount of quality components recovers it.

Modern blanks are built from PAN-based carbon fiber embedded in a resin matrix. Performance is governed by the Modulus of Elasticity—the ratio of stress to strain under load. Higher modulus means stiffer per unit of weight, allowing thinner walls and lower swing weight without sacrificing stiffness. That is why a high-modulus finesse rod can feel gossamer light yet transmit a crawdad tapping the gravel thirty yards out.

The “IM” ratings you see on blanks—IM6, IM8, IM10—refer specifically to Hexcel fiber classifications and are not a universal sequential quality scale. A rod marketed as “IM8” may use blended fibers that perform worse than a thoughtfully engineered “IM6.” Don’t buy the label. For graphite vs. fiberglass blank performance science, the modulus spectrum runs from E-Glass at roughly 9 million psi through intermediate modulus at 40–45 million, high modulus at 50–55 million, and ultra-high modulus at 60+ million psi.

Higher modulus also means more brittle. The material resists deforming—but that same resistance makes it susceptible to clean transverse fractures under side-loading. Put an ultra-high modulus blank in the hands of someone who side-loads their casts and you will eventually see a break six inches above the handle. Strain-rate engineering is what keeps these rods functional under real fishing loads.

The first time I held a 60-million-psi blank, I was genuinely surprised. It flexed like wet spaghetti compared to what the modulus number suggested — until I loaded it properly. The number tells you how stiff per weight, not how stiff in your hand. That distinction took me longer than it should have to internalize.

The anti-sell is honest: for casual panfishing or general bream rigs, a $40 composite blank outperforms in durability. Blank oscillation frequency and vibration dampening matter enormously for technical finesse fishing and almost not at all for drowning crickets off a dock. When selecting carbon fiber modulus by target species, the decision framework should start with how you fish—not with what sounds impressive.

Pro tip: Before ordering a blank, write down the three species you target most and the three techniques you use most. If sensitivity and casting accuracy are not in the answer, you don’t need a high-modulus blank. Put that money into guides.

Structural Asymmetry — Finding and Using the Rod’s Spine

Every carbon fiber blank has a spine—not mystical, purely structural. During construction, prepreg flags are rolled onto a tapered steel mandrel. Where wraps overlap, you get localized increases in wall density, creating structural asymmetry around the tube’s circumference: a soft side, a stiff side. When flexed, the blank rotates toward its natural bending plane. That pop into position is the spine.

The Manufacturing Origin of the Spine

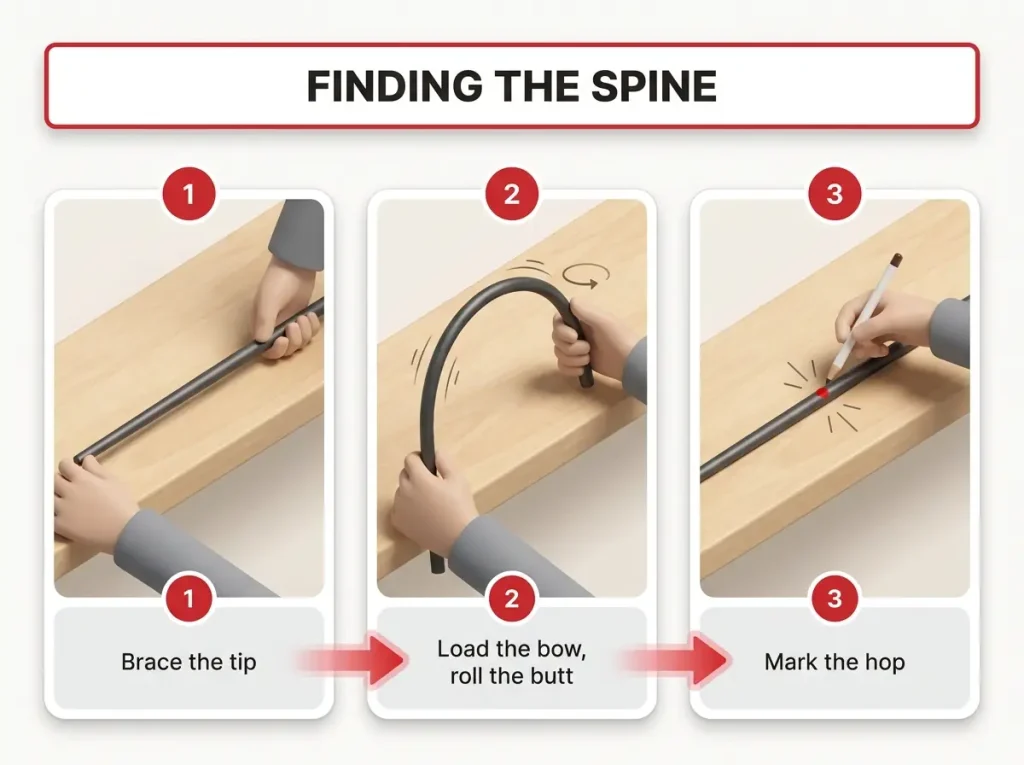

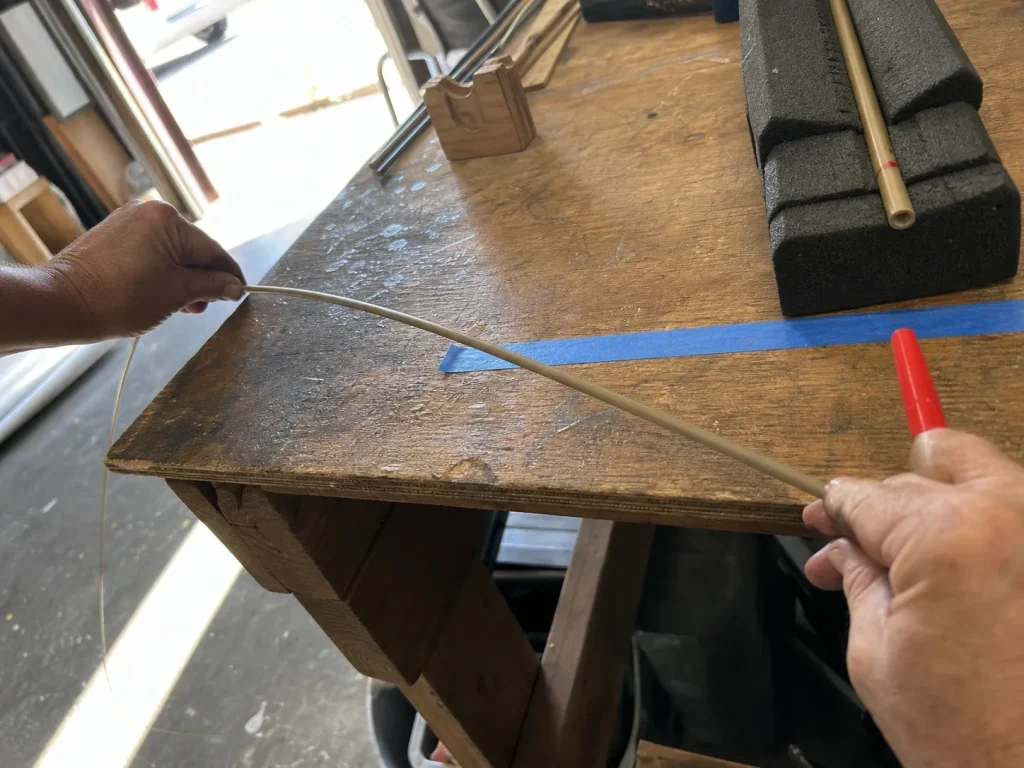

To locate the spine, rest the tip against a desk edge and apply gentle downward pressure on the butt while rolling the blank slowly. Attach a small masking tape flag near the tip first—as the blank rotates into spine position, the flag shows you exactly where it sits. Mark it with a china marker. Understanding the mechanics behind reliable spine-finder tools goes deeper, but your hands and a flag handle 90% of builds.

The polar moment of inertia is not perfectly uniform around a finished blank’s circumference because of those overlap zones. When you flex the blank, it seeks equilibrium and “pops” into position. That’s the spine declaring itself. It’s not subtle once you feel it.

My first dozen spines I found with a flat surface, a pencil, and about fifteen minutes each. The tape-flag method cut that to under three minutes per section. Small thing, but it adds up when you’re doing a multi-piece build on a weeknight.

Alignment Strategy by Rod Type

For alignment: spinning rod guides go on the inside of the curve (soft side), using the stiff side for lift and power. Casting rod guides go on the outside (spine side), preventing torsional resistance from reel weight and a fish pulling sideways. Fly rods vary—many builders go soft side, some prefer “away from the fish” for accuracy on technical presentations.

Build off-spine and the blank fights itself on every cast. On multi-piece rods, spine sections that conflict create dead spots—unmistakable flat zones in the flex profile where sections don’t load smoothly.

Pro tip: On multi-piece rods, spine every section individually and mark them before assembly. Don’t assume sections align—they often don’t.

Guide Architecture — Static Load Testing Over Progressive Charts

Every retail rod you have ever bought was spaced with a progressive chart: mathematically increasing intervals from tip to butt, efficient for mass production, optimized for no specific blank. Poor spacing creates “odd angular forces” at guide feet—energy that disappears instead of reaching the line. It reduces casting distance and fighting leverage.

Why Progressive Charts Fail

Progressive charts assume a generic taper. Your blank has its own taper—and no chart written for “an average rod” can account for where your specific blank actually flexes. Guides end up in positions where the line doesn’t follow the blank’s curve, creating sharp kinks that shed energy on every cast. The result is reduced distance and less control during a fight.

A blank loaded to 90° represents peak power. Bending past it reduces effective power and dramatically raises the risk of structural failure. That 90° threshold is the number the static load test is built around.

How to Execute the Static Load Test

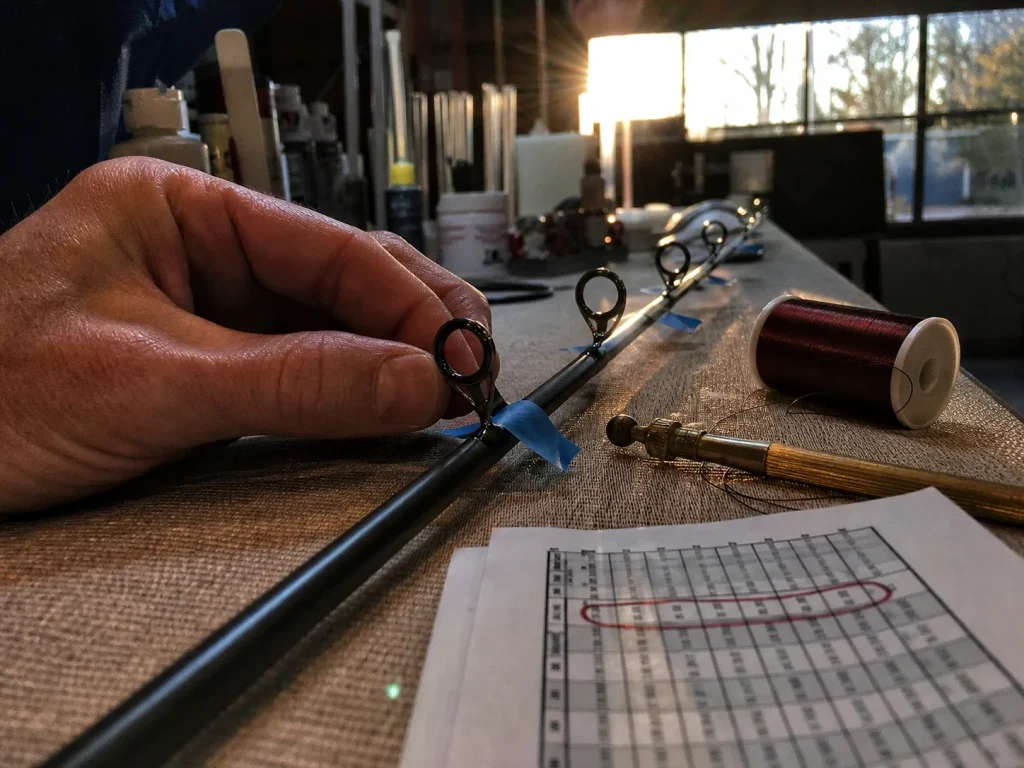

The static load test replaces assumption with reality. Tape the stripper guide 18–22 inches from the reel seat and the tip-top 4–4.5 inches from the tip. Thread a line through all taped guides, anchor the butt at 45°, and apply weight—a zip-loc with measured lead shot works—until the blank reaches 90°.

Observe the line. Contact with the blank means that zone needs a guide. Sharp angular kinks at a guide means it needs to move. Cluster guides tightly in the high-flex zone (the top third) and spread them toward the stiffer butt section. Re-test after every adjustment until the line flows in a smooth arc matching the blank’s curve. The final spacing usually looks unconventional to anyone raised on charts. That unconventional result is correct.

Guide Count Reduction — The Anti-Sell on Excess Guides

If you’re using titanium-frame SIC guides, this matters more, not less. Titanium frames run heavier per unit than alconite alternatives; excess guides on a high-modulus blank impede blank oscillation at exactly the wrong spot. For guide frame material weight and hardness data that affects placement decisions, the relationship between guide weight and blank damping is direct and measurable.

Adding guides beyond what the static load test requires adds weight with no performance return. A properly spaced lightweight guide train—fewer, lighter guides—improves blank oscillation. If you’re using budget alconite guides, total weight matters less. If you’ve invested in titanium SIC, reducing guide count to the static load minimum is the move.

Handle and Reel Seat — Building the Angler Interface

The grip is your sensory link to the rod. Every material choice is a tradeoff.

Natural cork transmits vibration most efficiently—lowest dampening, lightweight, classic feel. High-quality cork lets pressure bites reach your palm as a faint tap. EVA foam is durable but adds a slight dampening layer; acceptable for power rods. Carbon fiber grips deliver maximum sensitivity at minimum weight but are unforgiving in cold conditions. Hypalon is heavy, extremely durable, used almost exclusively offshore where feel is secondary.

Grips must be reamed to exactly match the blank’s taper. A sloppy fit requires excess arbor tape—and arbor tape dampens vibration. Every extra layer muffles the fish-tap signal before it reaches your hand. Ream slowly. Use a round file or a DIY reamer made from sandpaper wrapped on a broken blank section. Test-fit constantly.

When you arrive at the right fit, score the blank in a diamond pattern with 100-grit sandpaper, clean twice with 90%+ isopropyl alcohol, and apply a polyamide-based structural epoxy. Silicone contamination from fingerprints or product residue causes complete adhesive failure—the bond looks fine until you’re fighting a fish. Wipe the inside of the grip and the blank one final time with clean IPA on a lint-free cloth immediately before bonding. That single step prevents most bond failures.

For how reel seat position affects tackle balance and fatigue, the distance between the reel foot and your rod hand changes how the outfit feels across a long day on the water. Get the reel seat wrong and you compensate with muscle instead of leverage—which is how preventing angler’s elbow through correct tackle ergonomics connects directly to handle design choices made at the bench.

Handle and reel seat decisions look simple until you’re eight hours into a day on the water and your elbow starts talking to you. Build this interface for the conditions you actually fish, not the ones that look best on a finished rod hanging in a display.

Thread Wrapping and Epoxy Chemistry — The Science of the Finish

File every guide foot to a smooth, tapered ramp before wrapping begins. The test: drag the underside across your fingernail. If it scratches, it will stress-concentrate against the blank under load. That concentration cracks blanks from the inside out—not dramatically, but progressively, over a season.

Use Size A nylon thread for structural wraps. It provides more wraps per inch than heavier sizes, maximizing frictional surface area while minimizing epoxy weight. Never saw thread to trim it—lay the blade flat and pull the thread against the blade. Sawing destroys the underlying wrap structure. Metallic thread is decorative only; use it as trim bands over a structural base wrap, never as the primary structural wrapping thread.

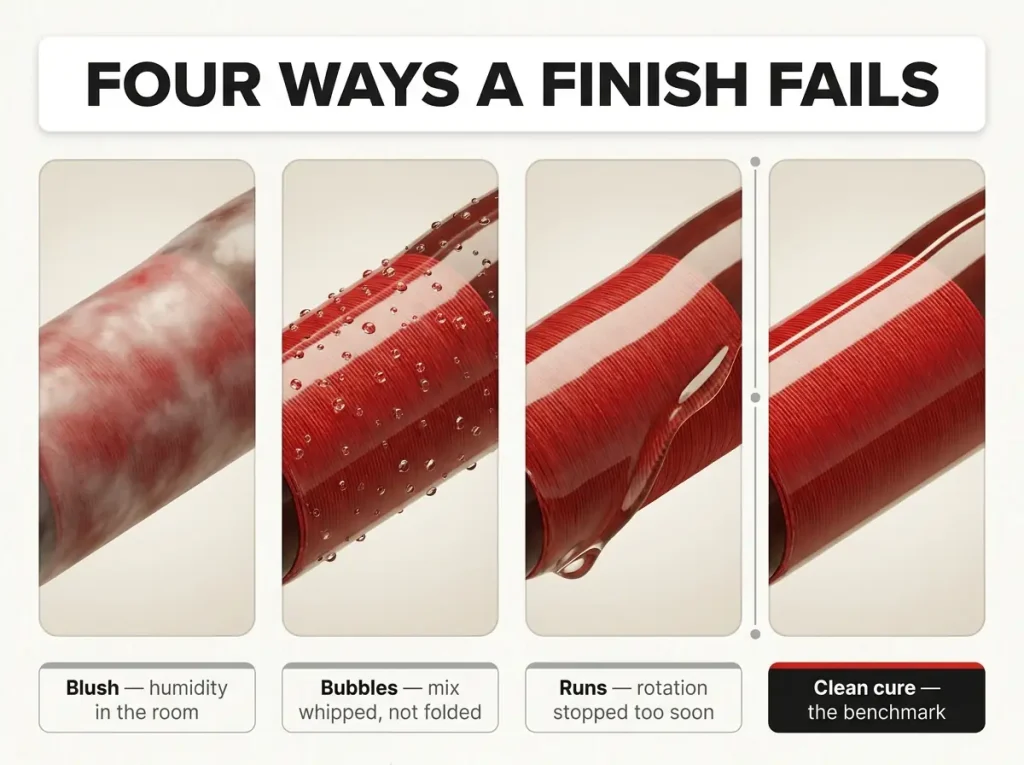

The finishing resin is a two-part exothermic system. Mixing Part A and Part B initiates a cross-linking reaction that releases heat. Mixing too fast introduces millions of microscopic bubbles. Twelve hours later, the finish looks like a snow globe—which is exactly what happened to me on that first build.

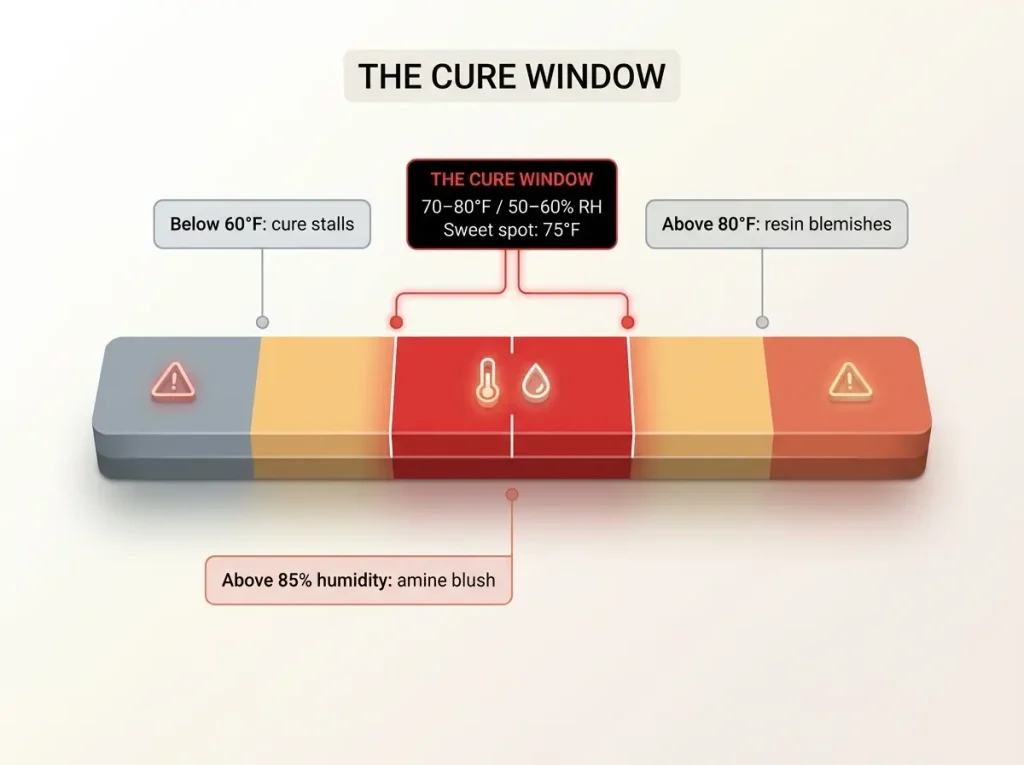

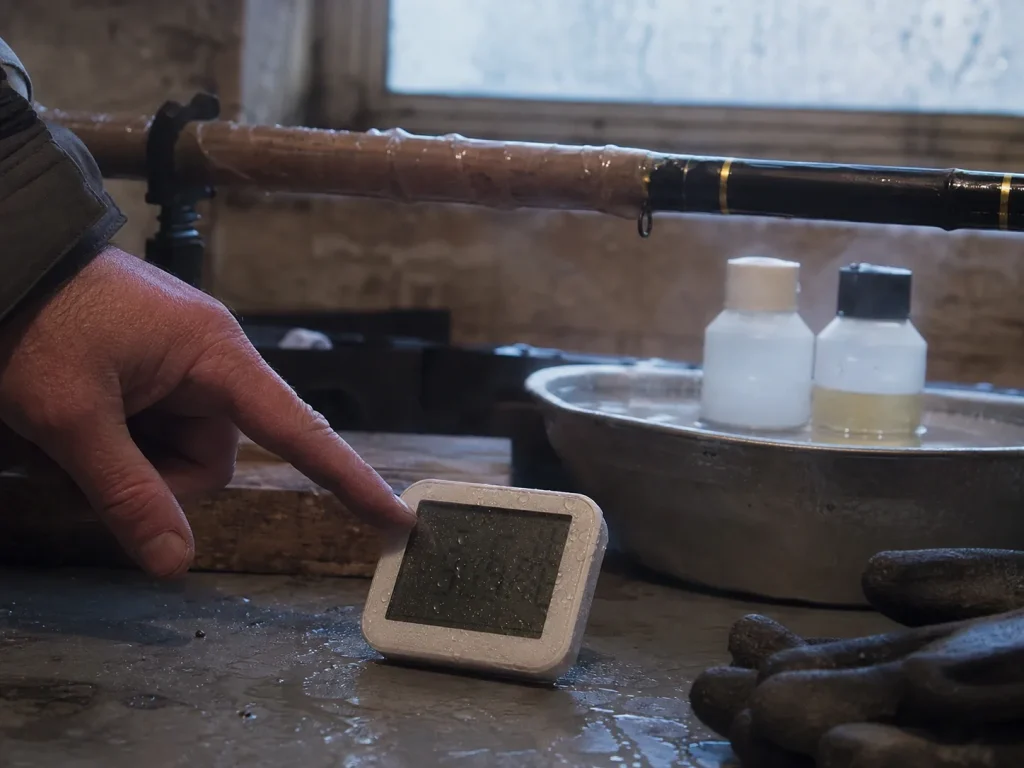

Pre-heat both bottles in an 80–90°F water bath. Thinner epoxy releases trapped air faster. Then stir slowly and deliberately for three to five minutes. Pour the mixed epoxy onto flat aluminum foil (the foil spread technique dissipates exothermic reaction heat and extends pot life). Apply to the wrap, then make a brief moving pass with a torch or heat gun. The heat breaks surface tension and pops remaining bubbles. Keep the heat moving—stopping scorches the finish.

Gen 4 resins use reactive diluents rather than solvents. The diluent bonds permanently into the polymer chain instead of evaporating, preventing the shrinkage and cracking seen in older finishes. A second coat bonds chemically with the first only within a 24–36 hour window. After that, scuff lightly with a Scotch-Brite pad to create a mechanical bond. Cure time and dry time are not the same—the finish feels dry in four to six hours but remains reactive for up to two weeks. A cold garage during that window produces cloudy, tacky finishes that cannot be corrected without sanding back to the wrap.

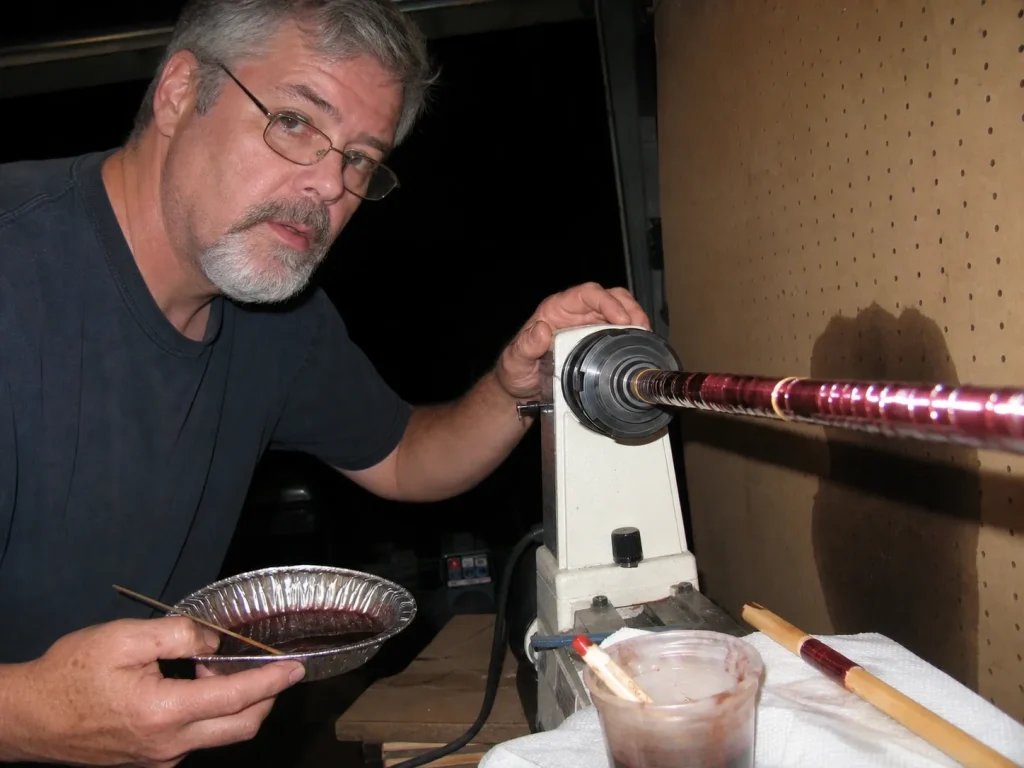

A rod dryer is mandatory during initial cure. A BBQ rotisserie motor for $15–$20 is a fully functional substitute for a purpose-built drying motor. The epoxy sags to one side without rotation. There’s no way around this step.

Workshop Safety and Environmental Stewardship

Two things in rod building cause permanent harm, and most guides skip them entirely.

Uncured epoxy is a chemical sensitizer. According to California CDPH epoxy resin safety data, one sensitization episode can create a permanent, lifelong allergic response to even trace exposure. You don’t get a warning. VOC inhalation risk rises sharply when epoxy is heated—do all thermal debubbling in ventilated space. Never use acetone to clean epoxy from skin; solvents dissolve the lipid barrier and carry dissolved compounds into the tissue. Use waterless skin cleaner or soap and water. Sanding partially cured epoxy generates hazardous dust—N95 minimum, P100 preferred in enclosed spaces.

Pro tip: Do all sanding outdoors or with a shop vacuum fitted with a HEPA filter running directly at the work area. The dust from partially cured epoxy is among the more hazardous materials in a rod-building workshop.

Lead bioaccumulates. The Indiana DNR documentation on avian lead poisoning from fishing gear documents how lead particles ground in the gizzard absorb into the tissue and cause neurological damage in birds. Oklahoma State University’s extension research on lead ammunition and sinkers on wildlife reinforces the same finding across multiple species and ecosystems. The custom builder has a clean opportunity: specify no-lead components from day one. Tungsten runs at 1.7× lead density—more sensitive in smaller profiles. Bismuth at 0.85× lead density is excellent for molding and shot. Tin at 0.65× lead density handles slow-fall presentations. For a practical tungsten and bismuth terminal tackle selection guide, the performance cases are strong enough that you sacrifice nothing but habit.

Safety and conservation are the same conversation once you’re working with these materials. Build clean from day one.

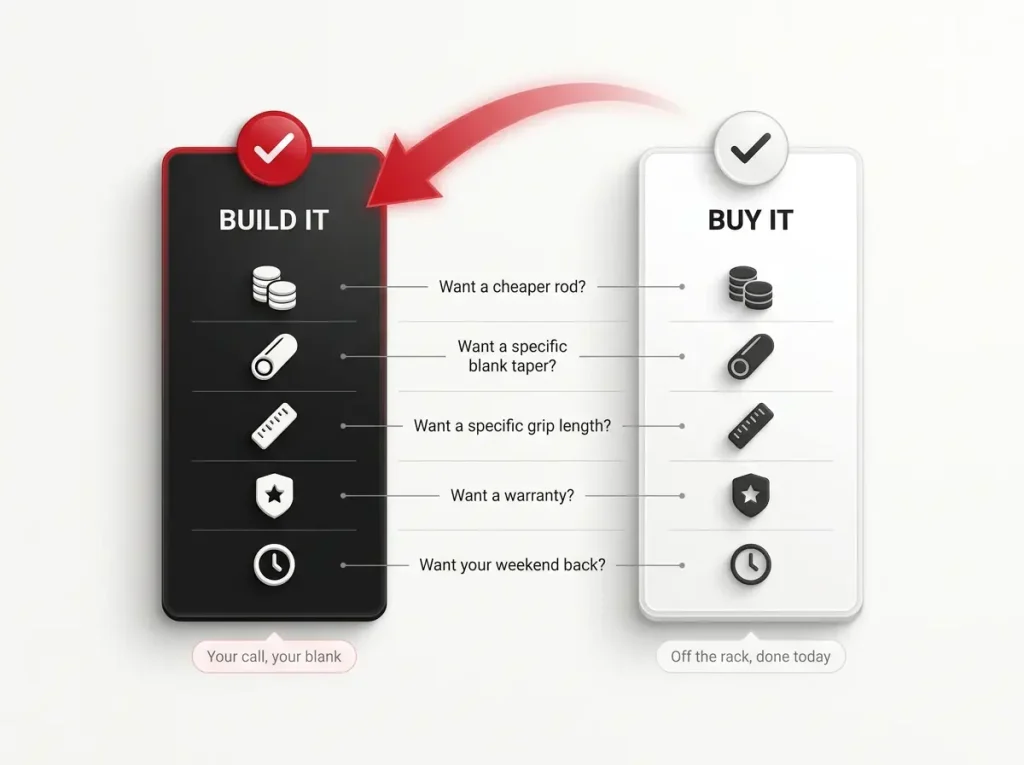

The Economics of the Custom Build — When It Pays and When It Doesn’t

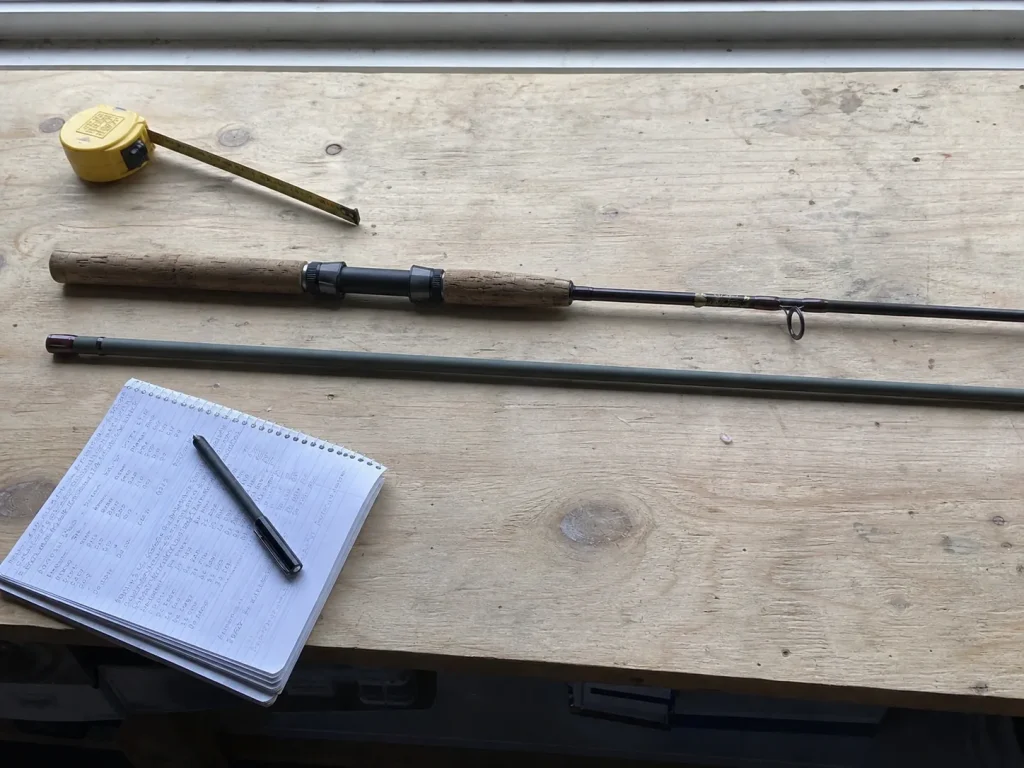

Labor is the single most expensive line item in retail rod pricing. Factory rods are designed for “the average angler” using automated processes. By performing the labor yourself, you redirect that cost directly into components: titanium-frame SIC guides rarely appear on retail rods under $400. The comparison is blunt—a retail rod gets progressive spacing, rarely gets spine-aligned, and carries brand-name overhead. A custom rod gets static load spacing, mandatory spine alignment, and a blank chosen for your specific application. For how to read fishing rod specs before you build or buy, understanding what retail specs actually represent clarifies where the value sits.

Before committing to a build, reviewing the anatomy of a fishing rod and its functional components grounds you in what you are actually sourcing. Casual panfishing, dock fishing, general bait fishing: a $50–$100 factory rod is economically superior. No custom build justifies itself for casual use.

Custom building earns its cost in four scenarios: technical finesse fishing where sensitivity determines whether you feel a pressure bite at all; heavy pelagic offshore where spine alignment under a sustained 40-pound load is structural reality; anglers with specific ergonomic needs no factory rod addresses; and ultra-sensitive bottom reading requiring the highest modulus blanks and lightest guide trains commercially available.

The dream rod pitfall is real. Every rod-building forum says the same thing: beginners attempt their most elaborate build first and ruin a premium blank on poor thread tension and snow globe epoxy. Spend one weekend practicing on a junk rod you were planning to retire. That is your first build. The second one will reflect what you learned. Run the economics calculation honestly before you touch a blank.

Pro tip: Don’t calculate cost by the hour you spend building. Calculate it by the component tier you can access. A $200 custom rod can carry components that don’t appear on retail rods under $400. That is where the real return sits.

Conclusion

Three things determine whether a custom rod actually performs or merely looks like one. The spine is not optional—every carbon fiber blank has structural asymmetry, and building off-spine means the rod fights itself on every cast. Static load testing beats progressive charts because no chart knows the specific taper of your blank. And epoxy chemistry is not decorative—slow mixing, thermal debubbling, and cross-link window management are the difference between a finish that looks like a jewel and one that looks like it molted.

Run the economics calculation honestly before you order anything. What do you actually fish for, how often, and what performance limitation is a factory rod imposing on you? If you have a real answer, you have a real reason to build. Pull out a junk rod you’ve been meaning to retire and spend one weekend on guide wrapping and epoxy application. That is the first build. The second one will be worthy of a premium blank.
